AP EAMCET · PHYSICS · Communication System
The minimum size of an antenna for transmitting electromagnetic waves at \(1500 \mathrm{MHz}\) is
- A \(2 \mathrm{~cm}\)
- B \(5 \mathrm{~cm}\)
- C \(2 \mathrm{~m}\)
- D \(200 \mathrm{~cm}\)
Answer & Solution
Correct Answer
(B) \(5 \mathrm{~cm}\)
Step-by-step Solution
Detailed explanation
Minimum size of transmitting antenna, \(\begin{aligned} l & =\frac{\lambda}{4}=\frac{c / f}{4} \\ \Rightarrow l & =\frac{3 \times 10^8}{4 \times 1500 \times 10^6}=\frac{3 \times 25}{1500}=\frac{1}{20} \mathrm{~m} \\ & =\frac{100}{20} \mathrm{~cm}=5 \mathrm{~cm} \end{aligned}\)
See the Complete Solution
Get step-by-step explanations for this and 2.5 Lakh+ more JEE, NEET & CET questions.
- Unlock all solutions
- Practice the full chapter
- Track accuracy across PYQs
4.8 rated on Google Play · 14,000+ reviews
More questions from PHYSICS
- A battery with a \(12 \mathrm{~V}\) emf has an initial charge of \(80 \mathrm{~A} . h\). If the potential across the terminals stays constant until battery is completely discharged, then this battery can deliver energy at the rate of \(120 \mathrm{~W}\) for a timeAP EAMCET 2022 Hard
- A force-time \((F-t)\) graph for a linear motionis shown in following figure. The segments shown are circular. The linear momentum gained between 0 and \(8 \mathrm{~s}\) is
AP EAMCET 2021 Medium - The potential difference across a conducting wire of length 20 cm is 30 V. If the electron mobility is \(2 \times 10^{-6} \mathrm{~m}^2 \mathrm{~V}^{-1} \mathrm{~s}^{-1}\), then the drift velocity of the electrons isAP EAMCET 2025 Medium

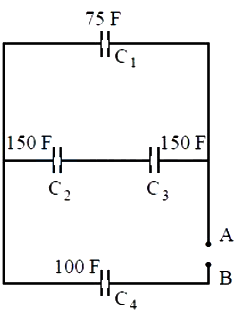

- The equivalent capacitance between the points \(\mathrm{A}\) and \(\mathrm{B}\) of the network shown in the figure is
