AP EAMCET · PHYSICS · Ray Optics
In Ramsden eyepiece, the two planoconvex lenses each of focal length \(f\) are separated by a distance \(12 \mathrm{~cm}\). The equivalent focal length (in \(\mathrm{cm}\) ) of the eyepiece is
- A \(10.5\)
- B \(12.0\)
- C \(13.5\)
- D \(15.5\)
Answer & Solution
Correct Answer
(C) \(13.5\)
Step-by-step Solution
Detailed explanation
\(d=\frac{2 f}{3}\) \(f=\frac{3 d}{2}=\frac{3 \times 12}{2}=18 \mathrm{~cm}\) Equivalent focal length is \(\begin{aligned} f^{\prime} & =\frac{f_1 f_2}{f_1+f_2}+\frac{f}{4}=\frac{18 \times 18}{18+18}+\frac{18}{4} \\ & =9+4.5 \\ & =13.5 \mathrm{~cm}\end{aligned}\)
See the Complete Solution
Get step-by-step explanations for this and 2.5 Lakh+ more JEE, NEET & CET questions.
- Unlock all solutions
- Practice the full chapter
- Track accuracy across PYQs
4.8 rated on Google Play · 14,000+ reviews
More questions from PHYSICS
- If a solid sphere is rolling without slipping on a horizontal plane, then the ratio of its rotational and total kinetic energies isAP EAMCET 2025 Medium
- The ratio of radii of two wires is \(1: 2\) and the density of their materials are in the ratio \(1: 4\). If same tension is applied to both the wires then the ratio of the speed of transverse waves produced in them isAP EAMCET 2023 Medium
- Assertion (A) The colour of radiation does not change on passing through different media.

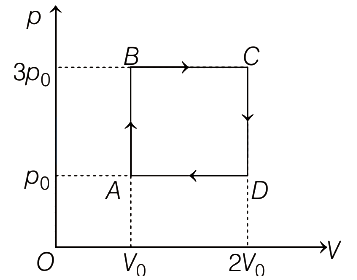

Reason (R) The media do not absorb or emit colours.AP EAMCET 2021 Medium - An ideal monoatomic gas is carried along the cycle \(A B C D A\) as shown in the figure. The total heat absorbed during this process is
