WBJEE · Physics · Semiconductors
A Zener diode having break-down voltage \(5.6 \mathrm{V}\) is connected in reverse bias with a battery of emf \(10 \mathrm{V}\) and a resistance of \(100 \Omega\) in series. The current flowing through the Zener diode is
- A \(88 \mathrm{mA}\)
- B \(0.88 \mathrm{mA}\)
- C \(4.4 \mathrm{mA}\)
- D \(44 \mathrm{mA}\)
Answer & Solution
Correct Answer
(D) \(44 \mathrm{mA}\)
Step-by-step Solution
Detailed explanation
Breakdown voltage of Zener diode \(=5.6 \mathrm{V}\) Voltage of source \(=10 \mathrm{V}\) Potential difference \(\Delta V=(10-5.6) \mathrm{V}=4.4 \mathrm{V}\) Resistance of circuit \(=100 \Omega\) The current passing through the Zener diode…
See the Complete Solution
Get step-by-step explanations for this and 2.5 Lakh+ more JEE, NEET & CET questions.
- Unlock all solutions
- Practice the full chapter
- Track accuracy across PYQs
4.8 rated on Google Play · 14,000+ reviews
More questions from Physics
- A conducting circular loop of resistance \(20 \Omega\) and cross-sectional area \(20 \times 10^{-2} \mathrm{~m}^{2}\) is placed perpendicular to a spatially uniform magnetic field B, which varies with time tas \(\mathrm{B}=2 \sin (50 \pi t)\) T. Find the net charge flowing through the loop in \(20 \mathrm{~ms}\) starting from \(\mathrm{t}=0\)WBJEE 2020 Medium
- When a spring is stretched by \(10 \mathrm{cm}\), the potential energy stored is \(E\). When the spring is stretched by \(10 \mathrm{cm}\) more, the potential energy stored in the spring becomesWBJEE 2012 Easy
-
The figure shows two identical parallel plate capacitors \(A\) and \(B\) of capacitances \(C\) connected to a battery. The key \(\mathrm{K}\) is initially closed. The switch is now opened and the free spaces between the plates of the capacitors are filled with a dielectric constant 3. Then which of the following statement (s) is/are true?WBJEE 2023 Medium - The temperature of the water of a pond is \(0^{\circ} \mathrm{C}\) while that of the surrounding atmosphere is \(-20^{\circ} \mathrm{C}\). If the density of ice is \(\rho\) coefficient of thermal conductivity is \(k\) and latent heat of melting is \(L,\) then the thickness \(Z\) of ice layer formed increases as a function of time \(t\) isWBJEE 2016 Hard
- The equation of a progressive wave is \(y=4 \sin (4 \pi t-0.04 x+\pi / 3)\) where \(x\) is in meter and \(t\) is in second. The velocity of the wave isWBJEE 2010 Easy
- A particle of mass \(M\) and charge \(q\), initially at rest, is accelerated by a uniform electric field \(E\) through a distance \(D\) and is then allowed to approach a fixed static charge \(Q\) of the same sign. The distance of the closest approach of the charge \(q\) will then beWBJEE 2013 Medium
More PYQs from WBJEE
- Let \(y=f(x)\) be any curve on the \(X-Y\) plane \& \(P\) be a point on the curve. Let \(C\) be a fixed point not on the curve. The length \(P C\) is either a maximum or a minimum, thenWBJEE 2024 Medium

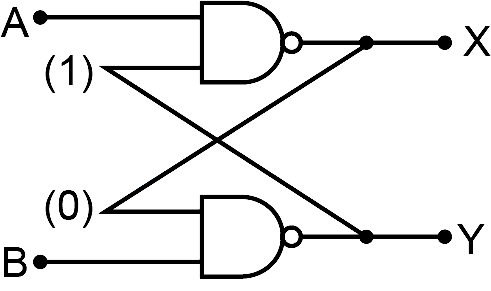

- In the circuit shown, inputs \(A\) and \(B\) are in states 1 and 0 respectively. What is the only possible stable state of the outputs \(X\) and \(Y ?\)
WBJEE 2018 Easy -

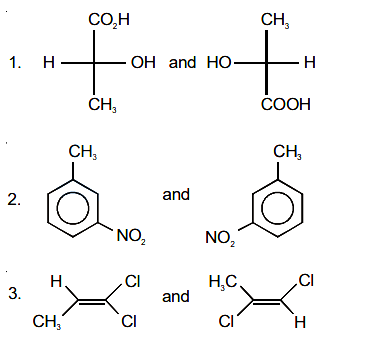

The relationship between the pair of compounds shown above are respectivelyWBJEE 2021 Easy - The points of the ellipse \(16 x^{2}+9 y^{2}=400\) at which the ordinate decreases at the same rate at which the abscissa increases is/are given byWBJEE 2016 Hard
