WBJEE · Physics · Oscillations
A small mass \(m\), attached to one end of a spring with a negligible mass and an unstretched length \(L\), executes virtual oscillation with angular frequency \(\omega_{0}\). When the mass is rotated with an angular speed \(\omega\) by holding the other end of the spring at a fixed point, the mass moves uniformly in a circular path in a horizontal plane. Then the increase in length of the spring during the rotation is
- A \(\frac{\omega^{2} L}{\omega_{0}^{2}-\omega^{2}}\)
- B \(\frac{\omega_{0}^{2} L}{\omega^{2}-\omega_{0}^{2}}\)
- C \(\frac{\omega^{2} L}{\omega_{0}^{2}}\)
- D \(\frac{\omega_{0}^{2} L}{\omega^{2}}\)
Answer & Solution
Correct Answer
(A) \(\frac{\omega^{2} L}{\omega_{0}^{2}-\omega^{2}}\)
Step-by-step Solution
Detailed explanation
The given situation can be shown as From figure, \(K\left(x \sin \theta=m \omega^{2}(L+x) \sin \theta\right.\) \(\Rightarrow \quad K x=\operatorname{m\omega}^{2}(L+x)\)...(i) Also, \(\quad \sqrt{\frac{K}{m}}=\omega_{0}\) \(\Rightarrow \quad K=m \omega_{0}^{2}\) Substituting the…
See the Complete Solution
Get step-by-step explanations for this and 2.5 Lakh+ more JEE, NEET & CET questions.
- Unlock all solutions
- Practice the full chapter
- Track accuracy across PYQs
4.8 rated on Google Play · 14,000+ reviews
More questions from Physics

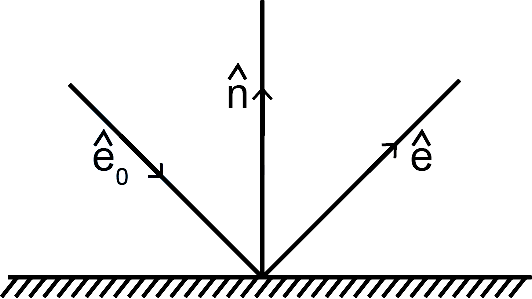

- A ray of light is reflected by a plane mirror. \(\hat{e}_{0}, \hat{e}\) and \(\hat{n}\) be the unit vectors along the incident ray, reflected ray and the normal to the reflecting surface respectively. Which of the following gives an expression for ê?
WBJEE 2019 Medium - Two charges, each equal to \(-q\) are kept at \((-a, 0)\) and \((a, 0)\). A charge \(q\) is placed at the origin. If \(q\) is given a small displacement along y direction, the force acting on q is proportional toWBJEE 2022 Easy
- If the potential energy of a hydrogen atom in the first excited state is assumed to be zero, then the total energy of \(n\) \(=\infty\) state is,WBJEE 2023 Medium
- Three capacitors of capacitance 1.0,2.0 and \(5.0 \mu \mathrm{F}\) are connected in series to a \(10 \mathrm{V}\) source. The potential difference across the \(2.0 \mu \mathrm{F}\) capacitor isWBJEE 2017 Medium
- \(300 \mathrm{gm}\) of water at \(25^{\circ} \mathrm{C}\) is added to \(100 \mathrm{gm}\) of ice at \(0^{\circ} \mathrm{C}\). The final temperature of the mixture isWBJEE 2021 Medium
- A uniform thin rod of length \(L\), mass \(m\) is lying on a smooth horizontal table. A horizontal impulse \(P\) is suddenly applied perpendicular to the rod at one end. The total energy of the rod after the impulse isWBJEE 2021 Medium
More PYQs from WBJEE
- The value of integral \(\int_{\frac{\pi}{6}}^{\frac{\pi}{3}}\frac{(sinx-xcosx)}{x(x+sinx)}dx\) isWBJEE 2013 Medium

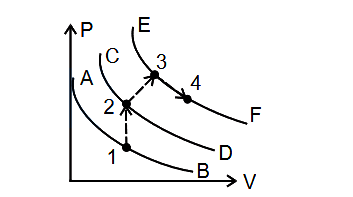

- Certain amount of an ideal gas is taken from its initial state 1 to final state 4 through the paths \(1 \rightarrow 2 \rightarrow 3 \rightarrow 4\) as shown in figure. \(A B, C D, E F\) are all isotherms. If \(v_p\) is the most probable speed of the molecules, then
