WBJEE · Physics · Oscillations
A particle of mass \(m\) is attached to three identical massless springs of spring constant ' \(k\) ' as shown in the figure. The time period of vertical oscillation of the particle is
- A \(2 \pi \sqrt{\frac{m}{k}}\)
- B \(2 \pi \sqrt{\frac{m}{2 k}}\)
- C \(2 \pi \sqrt{\frac{m}{3 k}}\)
- D \(\pi \sqrt{\frac{m}{k}}\)
Answer & Solution
Correct Answer
(B) \(2 \pi \sqrt{\frac{m}{2 k}}\)
Step-by-step Solution
Detailed explanation
\[ \begin{aligned} & \text { Hints : } \mathrm{T}=2 \pi \sqrt{\frac{m}{\mathrm{~K}_{\mathrm{eq}}}} \\ & \mathrm{F}=\mathrm{K} x+2 \mathrm{~K} x \cos ^2 45 \\ & \mathrm{~K}_{\mathrm{eq}} x=\mathrm{K} x+\mathrm{K} x \\ & \mathrm{~K}_{\mathrm{eq}}=2 \mathrm{~K} \end{aligned} \]
See the Complete Solution
Get step-by-step explanations for this and 2.5 Lakh+ more JEE, NEET & CET questions.
- Unlock all solutions
- Practice the full chapter
- Track accuracy across PYQs
4.8 rated on Google Play · 14,000+ reviews
More questions from Physics
- Two identical equiconvex lenses, each of focal length \(f\) are placed side by side in contact with each other with a layer of water in between them as shown in the figure. If refractive index of the material of the lenses is greater than that of water, how the combined focal length \(F\) is related to \(f ?\)
WBJEE 2018 Medium -

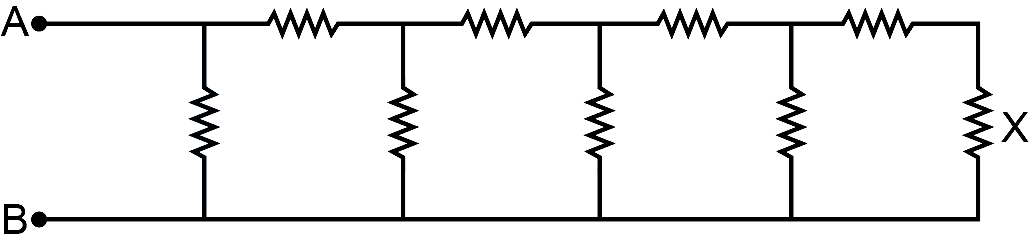

Consider the circuit shown in the figure where all the resistances are of magnitude \(1 \mathrm{k} \Omega\). If the current in the extreme right resistance \(X\) is \(1 \mathrm{mA},\) the potential difference between \(A\) and \(B\) isWBJEE 2017 Medium - The initial pressure and volume of a given mass of an ideal gas \(\left(\right.\) with \(\frac{C_{p}}{C_{V}}=\gamma),\) taken in a cylinder fitted with a piston, are \(p_{0}\) and \(V_{0}\) respectively. At this stage the gas has the same temperature as that of the surrounding medium which is \(T_{0}\). It is adiabatically compressed to a volume equal to \(\frac{V_{0}}{2}\) Subsequently the gas is allowed to come to thermal equilibrium with the surroundings. What is the heat released to the surrounding?WBJEE 2019 Medium
