TS EAMCET · Physics · Semiconductors
A zener diode of zener voltage 30 V is connected in a circuit as shown in the figure. The maximum current through the zener diode is
- A 5 mA
- B 14 mA
- C 9 mA
- D 7 mA
Answer & Solution
Correct Answer
(A) 5 mA
Step-by-step Solution
Detailed explanation
Step 1: Current through Load Resistor \(\left(I_L\right)\) Since the zener diode regulates the voltage at 30 V , the voltage across the load resistor ( \(R_L=6 \mathrm{k} \Omega\) ) will also be 30 V . The current through the load resistor, \(I_L\), is:…
See the Complete Solution
Get step-by-step explanations for this and 2.5 Lakh+ more JEE, NEET & CET questions.
- Unlock all solutions
- Practice the full chapter
- Track accuracy across PYQs
4.8 rated on Google Play · 14,000+ reviews
More questions from Physics

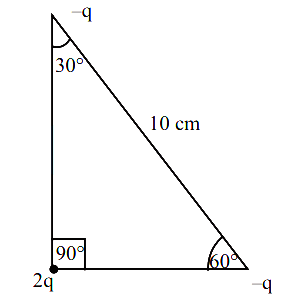

- Three charges are arranged on the vertices of a right angle triangle as shown in the figure. The magnitude of dipole moment of the combination in the unit of C-cm is
TS EAMCET 2022 Medium - Refractive index of a medium is \(\mu\). If the angle of incidence is twice that of the angle of refraction, then the angle of incidence isTS EAMCET 2023 Medium
- A mass is supported by a massless string wound around a uniform hollow cylinder of massand radius . If the string does not slip on the cylinder, then with what acceleration will the mass release? (Assume acceleration due to gravity)
TS EAMCET 2020 Easy - A ball (initially at rest) is released from the top of a tower. The ratio of work done by the force of gravity, in the first, second and third seconds isTS EAMCET 2015 Easy
- A free neutron decays spontaneously into :TS EAMCET 2006 Easy
- The electric current \(i\) in the circuit shown is
TS EAMCET 2011 Easy
More PYQs from TS EAMCET
- A body rotates about a stationary axis. If the angular deceleration is proportional to square root of angular speed, then the mean angular speed of the body, given \(\omega_0\) as the initial angular speed, isTS EAMCET 2019 Hard
-

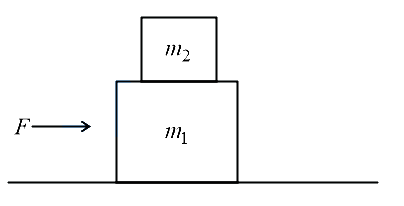

What is the maximum force that can be applied on block so that both will move together? There is no friction between and the horizontal table. The coefficient of friction between and isTS EAMCET 2021 Easy - The ratio of the average translational kinetic energies of hydrogen and oxygen at the same temperature isTS EAMCET 2025 Easy
