The magnetic field at the center of a current carrying loop of radius \( 0.1 \mathrm{~m} \) is \( 5 \sqrt{5} \) times that at
a point along its axis. The distance of this point from the centre of the loop is
- A \( 0.2 \mathrm{~m} \)
- B \( 0.1 \mathrm{~m} \)
- C \( 0.05 \mathrm{~m} \)
- D \( 0.25 \mathrm{~m} \)
Answer & Solution
Correct Answer
(A) \( 0.2 \mathrm{~m} \)
Step-by-step Solution
Detailed explanation
Magnetic field at the centre of current carrying loop is given \(\operatorname{as} B_{C}=\frac{\mu_{0}}{2} \frac{I}{r}\)
Magnetic field at the axis is given as \(B_{A}=\frac{\mu_{0}}{2} \frac{I r^{2}}{\left(\chi^{2}+r^{2}\right)^{3 / 2}}\)
Given, \(B_{C}=5 \sqrt{5} B_{A}\)
\(\Rightarrow \frac{\mu_{0}}{2} \frac{I}{r}=5 \sqrt{5} \frac{\mu_{0}}{2} \frac{I r^{2}}{\left(\chi^{2}+r^{2}\right)^{3 / 2}}\)
\(\Rightarrow\left(x^{2}+r^{2}\right)^{3 / 2}=r^{3} 5 \sqrt{5}\)
\(\Rightarrow\left(x^{2}+r^{2}\right)^{3 / 2}=r^{3} \times 5^{3 / 2}\)
\(\Rightarrow \chi^{2}+r^{2}=r^{2} \times 5\)
\(\Rightarrow \chi^{2}=5 r^{2}-r^{2}\)
\(\Rightarrow \chi^{2}=4 r^{2}\) or \(x=2 r\)
Given, \(r=0.1 \mathrm{~m}\)
\(\Rightarrow \chi=0.2 m\)
Magnetic field at the axis is given as \(B_{A}=\frac{\mu_{0}}{2} \frac{I r^{2}}{\left(\chi^{2}+r^{2}\right)^{3 / 2}}\)
Given, \(B_{C}=5 \sqrt{5} B_{A}\)
\(\Rightarrow \frac{\mu_{0}}{2} \frac{I}{r}=5 \sqrt{5} \frac{\mu_{0}}{2} \frac{I r^{2}}{\left(\chi^{2}+r^{2}\right)^{3 / 2}}\)
\(\Rightarrow\left(x^{2}+r^{2}\right)^{3 / 2}=r^{3} 5 \sqrt{5}\)
\(\Rightarrow\left(x^{2}+r^{2}\right)^{3 / 2}=r^{3} \times 5^{3 / 2}\)
\(\Rightarrow \chi^{2}+r^{2}=r^{2} \times 5\)
\(\Rightarrow \chi^{2}=5 r^{2}-r^{2}\)
\(\Rightarrow \chi^{2}=4 r^{2}\) or \(x=2 r\)
Given, \(r=0.1 \mathrm{~m}\)
\(\Rightarrow \chi=0.2 m\)
See the Complete Solution
Get step-by-step explanations for this and 2.5 Lakh+ more JEE, NEET & CET questions.
- Unlock all solutions
- Practice the full chapter
- Track accuracy across PYQs
4.8 rated on Google Play · 14,000+ reviews
More questions from Physics
- A cubical Gaussian surface has side of length \(a=10 \mathrm{~cm}\). Electric field lines are parallel to \(X\)-axis as shown in figure. The magnitudes of electric fields through surfaces \(A B C D\) and \(E F G H\) are \(6 \mathrm{kNC}^{-1}\) and \(9 \mathrm{kNC}^{-1}\) respectively. Then, the total charge enclosed by the cube is
[Take, \(\varepsilon_0=9 \times 10^{-12} \mathrm{Fm}^{-1}\) ]
KCET 2023 Medium - Two capillary tubes of different diameters are dipped in water. The rise of water isKCET 2011 Easy
- An ideal transformer has a turns ratio of 10 . When the primary is connected to \(220 \mathrm{~V}\), \(50 \mathrm{~Hz}\) as source, the power output isKCET 2023 Easy
- Pick out the correct statement from the following.KCET 2010 Easy
- The half life of a radioactive substance is \( 20 \) minutes. The time taken between \( 50 \% \) decay and
\( 87.5 \% \) decay of the substance will beKCET 2015 Hard - Which of the following statements is incorrect with reference of 'Nuclear force'?KCET 2025 Medium
More PYQs from KCET
- Identify the odd one from the following.KCET 2022 Hard
- Knee joint is an example forKCET 2014 Medium
- Match Column-I with Column - II related to an electric dipole of dipole moment \(\vec{p}\) that is placed in a uniform electric field \(\overrightarrow{\mathrm{E}}\).
Column - I Angle between \(\vec{p}\) and \(\vec{E}\) Column - II Potential energy of the dipole a. \(180^{\circ}\) i. \(-pE\) b. \(120^{\circ}\) ii. \(pE\) c. \(90^{\circ}\) iii. \(\frac{1}{2} \mathrm{pE}\) iv. \(0\) KCET 2025 Medium - The value of \(\int_{-1}^{2} \frac{|x|}{x} d x\), isKCET 2013 Easy

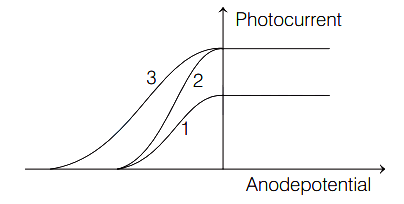

- The following graph represents the variation of photocurrent with anode potential for a metal surface. Here \(I_{1}, I_{2}\) and \(I_{3}\) represents intensities and \(\gamma_{1}, \gamma_{2}, \gamma_{3}\) represent frequency for curves 1,2 and 3 respectively, then
