KCET · Physics · Electrostatics
The electric potential at any point \(x, y, z\) in metres is given by \(\mathrm{V}=3 \mathrm{x}^{2}\). The electric field at a point \((2,0,1)\) is
- A \(12 \mathrm{Vm}^{-1}\)
- B \(-6 \mathrm{Vm}^{-1}\)
- C \(6 \mathrm{Vm}^{-1}\)
- D \(-12 \mathrm{Vm}^{-1}\)
Answer & Solution
Correct Answer
(D) \(-12 \mathrm{Vm}^{-1}\)
Step-by-step Solution
Detailed explanation
Here, electric potential
\(V=3 x^{2}\)
Electric field,
\(\mathrm{E}=-\frac{\partial \mathrm{V}}{\partial \mathrm{x}} =-\frac{\partial}{\partial \mathrm{x}}\left(3 \mathrm{x}^{2}\right)=-6 \mathrm{x} \)
\(\therefore \mathrm{E}_{(2,0,1)} =-12 \mathrm{Vm}^{-1}\)
\(V=3 x^{2}\)
Electric field,
\(\mathrm{E}=-\frac{\partial \mathrm{V}}{\partial \mathrm{x}} =-\frac{\partial}{\partial \mathrm{x}}\left(3 \mathrm{x}^{2}\right)=-6 \mathrm{x} \)
\(\therefore \mathrm{E}_{(2,0,1)} =-12 \mathrm{Vm}^{-1}\)
See the Complete Solution
Get step-by-step explanations for this and 2.5 Lakh+ more JEE, NEET & CET questions.
- Unlock all solutions
- Practice the full chapter
- Track accuracy across PYQs
4.8 rated on Google Play · 14,000+ reviews
More questions from Physics
- A parallel beam of light is incident on a converging lens parallel to its principal axis. As one moves away from the lens on the other side of the principal axis, the intensity of lightKCET 2009 Easy
- In Young's double slit experiment, fringes of width \(\beta\) are produced on a screen kept at a distance of \(1 \mathrm{~m}\) from the slit. When the screen is moved away by \(5 \times 10^{-2} \mathrm{~m}\), fringe width changes by \(3 \times 10^{-5} \mathrm{~m}\). The separation between the slits is \(1 \times 10^{-3} \mathrm{~m}\). The wavelength of the light used isKCET 2012 Hard
- At a metro station, a girl walks up a stationary escalator in \(20 \mathrm{~s}\). If she remains stationary on the escalator, then the escalator take her up in \(30 \mathrm{~s}\). The time taken by her to walk up on the moving escalator will beKCET 2020 Easy

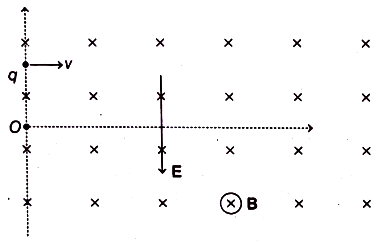

- A positively charged particle \(q\) of mass \(m\) is passed through a velocity selector. It moves horizontally righward without deviation along the line \(y=\frac{2 m v}{q B}\) with a speed \(v\). The electric field is vertically downwards and magnetic field is into the plane of paper. Now, the electric field is. switched off at \(t=0\). The angular momentum of the charged particle about origin \(O\) at \(t=\frac{\pi m}{q B}\) is
