KCET · Physics · Current Electricity

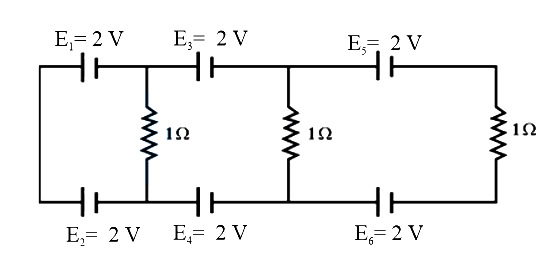

In the above circuit the current in each resistance is:
- A 0 A
- B 1 A
- C 0.25 A
- D 0.5 A
Answer & Solution
Correct Answer
(A) 0 A
Step-by-step Solution
Detailed explanation
p.d across each resistor is zero. Hence correct is zero in each resistor.
\(E _1- E _2=0, E _3- E _4=0, E _4- E _5\)
\(=0\), hence current through all the \(1 \Omega\) resistors is zero
