In a common emitter amplifier the input signal is applied across
- A anywhere
- B emitter-collector
- C collector-base
- D base-emitter
Answer & Solution
Correct Answer
(D) base-emitter
Step-by-step Solution
Detailed explanation

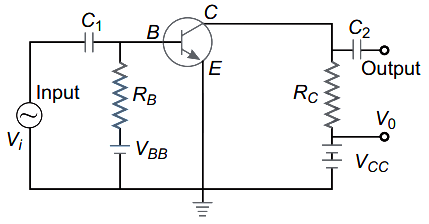

In CE amplifier, the input signal is applied across base-emitter junction as shown in the figure below.
