KCET · Physics · Ray Optics
A ray of light suffers a minimum deviation when incident on an equilateral prism of refractive
index \( \sqrt{2} \). The angle of incidence is
- A \( 30^{\circ} \)
- B \( 45^{\circ} \)
- C \( 60^{\circ} \)
- D \( 50^{\circ} \)
Answer & Solution
Correct Answer
(B) \( 45^{\circ} \)
Step-by-step Solution
Detailed explanation
Angle of deviation \(\sigma=i_{1}+i_{2}-A\)
where \(\mathrm{A}\) is angle of prism \(A=r_{1}+r_{2}\)
\(\Rightarrow \delta=i_{1}+i_{2}-\left(r_{1}+r_{2}\right)\)
At minimum deviation \(r_{1}=r_{2}\) and \(i_{1}=i_{2}\)
\(\Rightarrow \delta=2 i_{1}-2 r_{1}\)
and \(A=2 r_{1}\)
For equilateral prism, \(\mathrm{A}=60^{\circ}\)
\(\Rightarrow 2 r_{1}=60^{\circ} \Rightarrow r_{1}=30^{\circ}\)
Now we know
\(\sin i_{1}=\mu \sin r_{1} \Rightarrow i_{1}=\sin ^{-1}\left(\mu \sin r_{1}\right)\)
\(i_{1}=\sin ^{-1}\left(\sqrt{2} \sin 30^{\circ}\right)=\sin ^{-1}\left(\sqrt{2} \times \frac{1}{2}\right)=\sin ^{-1}\left(\frac{1}{\sqrt{2}}\right)\)
\(\Rightarrow i_{1}=45^{\circ}\)
where \(\mathrm{A}\) is angle of prism \(A=r_{1}+r_{2}\)
\(\Rightarrow \delta=i_{1}+i_{2}-\left(r_{1}+r_{2}\right)\)
At minimum deviation \(r_{1}=r_{2}\) and \(i_{1}=i_{2}\)
\(\Rightarrow \delta=2 i_{1}-2 r_{1}\)
and \(A=2 r_{1}\)
For equilateral prism, \(\mathrm{A}=60^{\circ}\)
\(\Rightarrow 2 r_{1}=60^{\circ} \Rightarrow r_{1}=30^{\circ}\)
Now we know
\(\sin i_{1}=\mu \sin r_{1} \Rightarrow i_{1}=\sin ^{-1}\left(\mu \sin r_{1}\right)\)
\(i_{1}=\sin ^{-1}\left(\sqrt{2} \sin 30^{\circ}\right)=\sin ^{-1}\left(\sqrt{2} \times \frac{1}{2}\right)=\sin ^{-1}\left(\frac{1}{\sqrt{2}}\right)\)
\(\Rightarrow i_{1}=45^{\circ}\)
See the Complete Solution
Get step-by-step explanations for this and 2.5 Lakh+ more JEE, NEET & CET questions.
- Unlock all solutions
- Practice the full chapter
- Track accuracy across PYQs
4.8 rated on Google Play · 14,000+ reviews
More questions from Physics
- An object is placed at \( 20 \mathrm{~cm} \) in front of a concave mirror produces three times magnified real
image. What is focal length of the concave mirror?KCET 2014 Easy - A circular coil of wire of radius \(r\) has \(n\) turns and carries a current \(I\). The magnetic induction \(B\) at a point on the axis of the coil at a distance \(\sqrt{3} r\) from its centre isKCET 2022 Medium

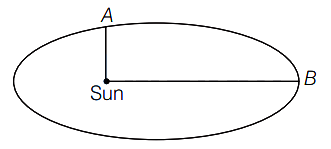

- Earth is moving around the sun in elliptical orbit as shown. The ratio of \(O B\) and \(O A\) is \(R\). Then the ratio of Earth's velocities at \(A\) and \(B\) is
