KCET · Physics · Magnetic Effects of Current
A magnetic needle has a magnetic moment of \( 5 \times 10^{-2} \mathrm{Am}^{2} \) and moment of inertia \( 8 \times \) \( 10^{-6} \mathrm{kgm}^{2} \). It hasa period of oscillation of \( 2 \mathrm{~s} \) in a magnetic field \( \vec{B} \). The magnitude of magnetic field is approximately
- A \( 3.2 \times 10^{-4} \mathrm{~T} \)
- B \( 1.6 \times 10^{-4} \mathrm{~T} \)
- C \( 0.8 \times 10^{-4} \)
- D \( 0.4 \times 10^{-4} \)
Answer & Solution
Correct Answer
(B) \( 1.6 \times 10^{-4} \mathrm{~T} \)
Step-by-step Solution
Detailed explanation
\(T=2 \pi \sqrt{\frac{I}{M B}} \)
\(2=2 \pi \sqrt{\frac{8 \times 10^{-6}}{5 \times 10^{-2} \times B}} \)
\(\text {Squaring } 1=\frac{\Pi^{2} \times 8 \times 10^{-6}}{5 \times 10^{-2} \times B} \)
\(\therefore B=\frac{3.14^{2} \times 8 \times 10^{-6}}{5}=1.6 \times 10^{-4} \mathrm{~T}\)
\(2=2 \pi \sqrt{\frac{8 \times 10^{-6}}{5 \times 10^{-2} \times B}} \)
\(\text {Squaring } 1=\frac{\Pi^{2} \times 8 \times 10^{-6}}{5 \times 10^{-2} \times B} \)
\(\therefore B=\frac{3.14^{2} \times 8 \times 10^{-6}}{5}=1.6 \times 10^{-4} \mathrm{~T}\)
See the Complete Solution
Get step-by-step explanations for this and 2.5 Lakh+ more JEE, NEET & CET questions.
- Unlock all solutions
- Practice the full chapter
- Track accuracy across PYQs
4.8 rated on Google Play · 14,000+ reviews
More questions from Physics
- A cylindrical tube open at both the ends has a fundamental frequency of \(390 \mathrm{~Hz}\) in air. If \(\frac{1}{4}\) th of the tube is immersed vertically in water the fundamental frequency of air column isKCET 2009 Hard
- The de-Broglie wavelength of a proton (charge \(=16 . \times 10^{-19} \mathrm{C}\), mass \(\left.=16 . \times 10^{-27} \mathrm{~kg}\right)\) accelerated through a potential difference of \(1 \mathrm{kV}\) isKCET 2007 Easy
- For a particle executing simple harmonic motion (SHM), at its mean positionKCET 2024 Easy

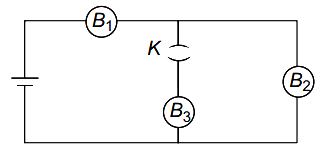

- \(\mathrm{B}_{1}, \mathrm{~B}_{2}\) and \(\mathrm{B}_{3}\) are the three identical bulbs connected to a battery of steady emf with key \(\mathrm{K}\) closed. What happens to the brightness of the bulbs \(B_{1}\) and \(B_{2}\) when the key is opened?
