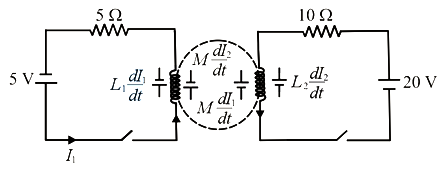

The inductors of two $LR$ circuits are placed next to each other, as shown in the figure. The values of the self-inductance of the inductors, resistances, mutual-inductance and applied voltages are specified in the given circuit. After both the switches are closed simultaneously, the total work done by the batteries against the induced $EMF$ in the inductors by the time the currents reach their steady-state values is_______$\mathrm{mJ}$.

Column I describes some situations in which a small object moves. Column II describes some characteristics of these motions. Match the situations in Column I with the characteristics in Column II and indicate your answer by darkening appropriate bubbles in the \(4 \times 4\) matrix given in the ORS.

The work done on a particle of mass m by a force $\text{K}\left[\frac{\text{x}}{{\left({\text{x}}^2+{\text{y}}^2\right)}^{3/2}}\widehat{\text{i}}+\frac{\text{y}}{{\left({\text{x}}^2+{\text{y}}^2\right)}^{3/2}}\widehat{\text{j}}\right]$ (K being a constant of appropriate dimensions, when the particle is taken from the point (a,0) to the point (0,a) along a circular path of radius a about the origin in the x-y plane is

A uniform wooden stick of mass 1.6 kg and length $\mathcal{l}$ rests in an inclined manner on a smooth, vertical wall of height h $\left(<\mathcal{l}\right)$ such that a small portion of the stick extends beyond the wall. The reaction force of the wall on the stick is perpendicular to the stick. The stick makes an angle of ${30}^o$ with the wall and the bottom of the stick is on a rough floor. The reaction of the wall on the stick is equal in magnitude to the reaction of the floor on the stick. The ratio h/ $\mathcal{l}$ and the frictional force f at the bottom of the stick are: $\left(g=10 m{s}^{-2}\right)$

Paragraph :
A uniform thin cylindrical disk of mass \(M\) and radius \(R\) is attached to two identical massless springs of spring constant \(k\) which are fixed to the wall as shown in the figure. The springs are attached to the axle of the disk symmetrically on either side at a distance \(d\) from its centre. The axle is massless and both the springs and the axle are in a horizontal plane. The unstretched length of each spring is \(L\). The disk is initially at its equilibrium position with its centre of mass \((C M)\) at a distance Lfrom the wall. The disk rolls without slipping with velocity \(\mathbf{v}_0=v_0 \hat{\mathbf{i}}\) The coefficient of friction is \(\mu\).
Question :
The net external force acting on the disk when its centre of mass is at displacement \(x\) with respect to its equilibrium position is

A series \(R-C\) combination is connected to an \(\mathrm{AC}\) voltage of angular frequency \(\omega=500 \mathrm{rad} / \mathrm{s}\). If the impedance of the \(R-C\) circuit is \(R \sqrt{1.25}\), the time constant (in millisecond) of the circuit is

Four harmonic waves of equal frequencies and equal intensities ${\mathrm{I}}_0$ have phase angles $0,\frac{\mathrm{\pi }}{3},\frac{2\mathrm{\pi }}{3}$ and $\mathrm{\pi }$ . When they are superposed, the intensity of the resulting wave is $\mathrm{n}{\mathrm{I}}_0$ . The value of $\mathrm{n}$ is

An ideal gas is in thermodynamic equilibrium. The number of degrees of freedom of a molecule of the gas is $n$. The internal energy of one mole of the gas is $U_n$ and the speed of sound in the gas is $v_n$. At a fixed temperature and pressure, which of the following is the correct option?

Which of the following inequalities is/are TRUE?

Match each of the compounds is Column I with its characteristic reaction(s) is Column II.

Match the following for the given process

Paragraph :
The capacitor of capacitance \(C\) can be charged (with the help of a resistance \(R\) ) by a voltage source \(V\), by closing switch \(S_1\) while keeping switch \(S_2\) open. The capacitor can be connected in series with an inductor \(L\) by closing switch \(S_2\) and opening \(S_1\).

Question :
Initially, the capacitor was uncharged. Now, switch \(S_1\) is closed and \(S_2\) is kept open. If time constant of this circuit is \(\tau\), then

Paragraph:
The figure shows a surface \(X Y\) separating two transparent media, medium-1 and medium-2. The lines \(a b\) and \(c d\) represent wavefronts of a light wave travelling in medium-1 and incident on \(X Y\). The lines ef and \(g h\) represent wavefronts of the light wave in medium-2 after refraction.
Question:
The phases of the light wave at \(c, d, e\) and \(f\) are \(\phi_c, \phi_d, \phi_e\) and \(\phi_f\), respectively. It is given that \(\phi_c \neq \phi_f\).
