Incandescent bulbs are designed by keeping in mind that the resistance of their filament increases with the increase in temperature. If at room temperature, \(100 \mathrm{~W}, 60 \mathrm{~W}\) and \(40 \mathrm{~W}\) bulbs have filament resistances \(R_{100}, R_{60}\) and \(R_{40}\), respectively, the relation between these resistances is

A small mass \(m\) is attached to a massless string whose other end is fixed at \(P\) as shown in the figure. The mass is undergoing circular motion in the \(x-y\) plane with centre at \(O\) and constant angular speed \(\omega\). If the angular momentum of the system, calculated about \(O\) and \(P\) are denoted by \(\vec{L}_{O}\) and \(\vec{L}_{P}\) respectively, then

Paragraph:
Modern trains are based on Maglev technology in which trains are magnetically leviated, which runs its EDS Maglev system.
There are coils on both sides of wheels. Due to motion of train, current induces in the coil of track which levitate it. This is in accordance with Lenz's law. If trains lower down then due to Lenz's law a repulsive force increases due to which train gets uplifted and if it goes much high then there is a net downward force disc to gravity. The advantage of Maglev train is that there is no friction between the train and the track, thereby reducing power consumption and enabling the train to attain very high speeds.
Disadvantage of Maglev train is that as it slows down the electromagnetic forces decreases and it becomes difficult to keep it leviated and as it moves forward according to Lenz law, there is an electromagnetic drag force.
Question:
Which force causes the train to elevate up?

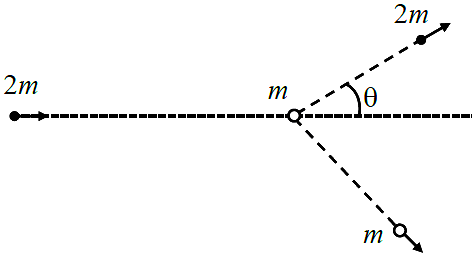

In a scattering experiment, a particle of mass \(2 m\) collides with another particle of mass \(m\), which is initially at rest. Assuming the collision to be perfectly elastic, the maximum angular deviation \(\theta\) of the heavier particle, as shown in the figure, in radians is:

Paragraph:
Two plane harmonic sound waves are expressed by the equations.
\(\begin{aligned}
& y_1(x, t)=A \cos (0.5 \pi x-100 \pi t) \\
& y_2(x, t)=A \cos (0.46 \pi x-92 \pi t)
\end{aligned}\)
(All parameters are in MKS)
Question:
At \(x=0\) how many times the amplitude of \(y_1+y_2\) is zero in one second at \(x=0\) ?

Paragraph :
A uniform thin cylindrical disk of mass \(M\) and radius \(R\) is attached to two identical massless springs of spring constant \(k\) which are fixed to the wall as shown in the figure. The springs are attached to the axle of the disk symmetrically on either side at a distance \(d\) from its centre. The axle is massless and both the springs and the axle are in a horizontal plane. The unstretched length of each spring is \(L\). The disk is initially at its equilibrium position with its centre of mass \((C M)\) at a distance Lfrom the wall. The disk rolls without slipping with velocity \(\mathbf{v}_0=v_0 \hat{\mathbf{i}}\) The coefficient of friction is \(\mu\).
Question :
The net external force acting on the disk when its centre of mass is at displacement \(x\) with respect to its equilibrium position is

A \(2 \mu \mathrm{F}\) capacitor is charged as shown in the figure. The percentage of its stored energy dissipated after the switch \(S\) is turned to position 2 , is

An incandescent bulb has a thin filament of tungsten that is heated to high temperature by passing an electric current. The hot filament emits black-body radiation. The filament is observed to break up at random locations after a sufficiently long time of operation due to non-uniform evaporation of tungsten from the filament. If the bulb is powered at constant voltage, which of the following statement(s) is(are) true?

Suppose $\det \left[\begin{array}{cc}\sum _{k=0}^{n}k& \sum _{k=0}^n{}_{\mathrm{ }}{}^n{C}_k{k}^2\\ \sum _{k=0}^n{}_{\mathrm{ }}{}^n{C}_{k}k& \sum _{k=0}^n{}_{\mathrm{ }}{}^n{C}_k{3}^k\end{array}\right]=0,$ holds for some positive integer $n.$ Then $\sum _{k=0}^n\frac{{}_{ }{}^n{C}_k}{k+1}$ equals

Let $a_1,a_2,a_3,\dots$ be an arithmetic progression with $a_1=7$ and common difference $8$. Let $T_1,T_2,T_3,\dots$ be such that $T_1=3$ and $T_{n+1}-T_n=a_n$ fo $n\ge 1$. Then, which of the following is/are TRUE?

Let $f :\left[-\frac{1}{2}, 2\right]\to \mathbb{R}$ and $g:\left[-\frac{1}{2},2\right]\to \mathbb{R}$ be functions defined by $f\left(x\right)=\left[x^2-3\right]$ and $g\left(x\right)=\left|x\right|f\left(x\right)+\left|4x-7\right|f\left(x\right)$ , where $\left[y\right]$ denotes the greatest integer less than or equal to $y$ for $y\in \mathbb{R}$ . Then

In a historical experiment to determine Planck's constant, a metal surface was irradiated with light of different wavelengths. The emitted photoelectron energies were measured by applying a stopping potential. The relevant data for the wavelength \((\lambda)\) of incident light and the corresponding stopping potential (\(V_0\)) are given below:

\(\lambda(\mu m)\)	Volt
0.3	2.0
0.4	1.0
0.5	0.4

Given that \(c=3 \times 10^8 m s^{-1}\) and \(e=1.6 \times 10^{-19} C\), Planck's constant (in units of J s) found from such an experiment is :

A cylindrical container is to be made from certain solid material with the following constraints: It has a fixed inner volume of $\mathrm{V}\mathrm{ }\mathrm{m}{\mathrm{m}}^3$, has a 2 mm thick solid wall and is open at the top. The bottom of the container is a solid circular disc of thickness 2mm and is of radius equal to the outer radius of the container.
If the volume of the material used to make the container is minimum when the inner radius of the container is 10mm, then the value of $\frac{\mathrm{V}}{250\mathrm{\pi }}\mathrm{ }$ is
