A solid sphere of radius R and density ρ is attached to one end of a mass-less spring of force constant k. The other end of the spring is connected to another solid sphere of radius R and density 3 ρ The complete arrangement is placed in a liquid of density 2ρ and is allowed to reach equilibrium. The correct statement(s) is (are)

A block of base \(10 \mathrm{~cm} \times 10 \mathrm{~cm}\) and height \(15 \mathrm{~cm}\) is kept on an inclined plane. The coefficient of friction between them is \(\sqrt{3}\). The inclination \(\theta\) of this inclined plane from the horizontal plane is gradually increased from \(0^{\circ}\). Then,

Paragraph:
\(\mathbf{P}_{17 \text { - } 19}\) : Paragraph for Questions Nos. 17 to 19 Two discs \(A\) and \(B\) are mounted coaxially on a vertical axle. The discs have moments of inertia I and 2I, respectively about the common axis. Disc \(A\) is imparted an initial angular velocity \(2 \omega\) using the entire potential energy of a spring compressed by a distance \(x_1\). Disc \(B\) is imparted an angular velocity \(\omega\) by a spring having the same spring constant and compressed by a distance \(x_2\). Both the discs rotate in the clockwise direction.Question:
The ratio \(\frac{x_1}{x_2}\) is

A flat plate is moving normal to its plane through a gas under the action of a constant force F. The gas is kept at a very low pressure. The speed of the plate v I much less than the average speed u of the gas molecules. Which of the following options is true?

A Hydrogen-like atom has atomic number $Z$. Photons emitted in the electronic transitions from level $n=4$ to level $n=3$ in these atoms are used to perform photoelectric effect experiment on a target metal. The maximum kinetic energy of the photoelectrons generated is $1.95 \mathrm{eV}$. If the photoelectric threshold wavelength for the target metal is $310 \mathrm{nm}$, the value of $Z$ is _____.
[Given $hc=1240 \mathrm{eV}-\mathrm{nm}$ and $Rhc=13.6 \mathrm{eV}$, where $R$ is the Rydberg constant, $h$ is the Planck’s constant and $c$ is the speed of light in vacuum]

Paragraph :
A thermally insulating cylinder has a thermally insulating and frictionless movable partition in the middle, as shown in the figure below. On each side of the partition, there is one mole of an ideal gas, with specific heat at constant volume, \(C_{V}=2 R\). Here, \(R\) is the gas constant. Initially, each side has a volume \(V_{0}\) and temperature \(T_{0}\). The left side has an electric heater, which is turned on at very low power to transfer heat \(Q\) to the gas on the left side. As a result the partition moves slowly towards the right reducing the right side volume to \(V_{0} / 2\). Consequently, the gas temperatures on the left and the right sides become \(T_{L}\) and \(T_{R}\), respectively. Ignore the changes in the temperatures of the cylinder, heater and the partition.

Question :
The value of $\frac{Q}{R{T}_0}$ is:

A heavy nucleus $N$, at rest, undergoes fission $N\to P+Q,$ where $P$ and $Q$ are two lighter nuclei. Let $\delta =M_N-M_P-M_Q$, where $M_P, M_Q$ and $M_N$ are the masses of $P,Q$ and $N$, respectively. $E_P$ and $E_Q$ are the kinetic energies of $P$ and $Q$, respectively. The speeds of $P$ and $Q$ are $v_P$ and $v_Q$, respectively. If $c$ is the speed of light, which of the following statement(s) is (are) correct?

\[
\text { Match the statements given in Column I with the values given in Column II. }
\]

A transparent thin film of uniform thickness and refractive index ${\mathrm{n}}_1=1.4$ is coated on the convex spherical surface of radius R at one end of a long solid glass cylinder of refractive index ${\mathrm{n}}_2=1.5$ , as shown in the figure. Rays of light parallel to the axis of the cylinder traversing through the film from air to glass get focused at distance f₁ from the film, while rays of light traversing from glass to air get focused at distance f₂ from the film. Then

Which of the following halides react(s) with \(\mathrm{AgNO}_{3}(\mathrm{aq})\) to give a precipitate that dissolves in \(\mathrm{Na}_{2} \mathrm{~S}_{2} \mathrm{O}_{3}(\mathrm{aq})\) ?

Consider the strong electrolytes ${\mathrm{Z}}_{\mathrm{m}}{\mathrm{X}}_{\mathrm{n}}, {\mathrm{U}}_{\mathrm{m}}{\mathrm{Y}}_{\mathrm{p}}$ and ${\mathrm{V}}_{\mathrm{m}}{\mathrm{X}}_{\mathrm{n}}$. Limiting molar conductivity of ${\mathrm{U}}_{\mathrm{m}}{\mathrm{Y}}_{\mathrm{p}}$ and ${\mathrm{V}}_{\mathrm{m}}{\mathrm{X}}_{\mathrm{n}}$ are $250$ and $440 \mathrm{S} {\mathrm{cm}}^2 {\mathrm{mol}}^{-1}$, respectively. The value of $\left(\mathrm{m}+\mathrm{n}+\mathrm{p}\right)$ is Given:

Ion	\(Z ^{ n +}\)	\(U ^{ p +}\)	\(V ^{ n +}\)	\(X ^{ m }\)	\(Y ^{ m -}\)
\(\lambda^0(\text{S cm} ^2\) \(\text{mol}^{-1})\)	50.0	25.0	100.0	80.0	100.0

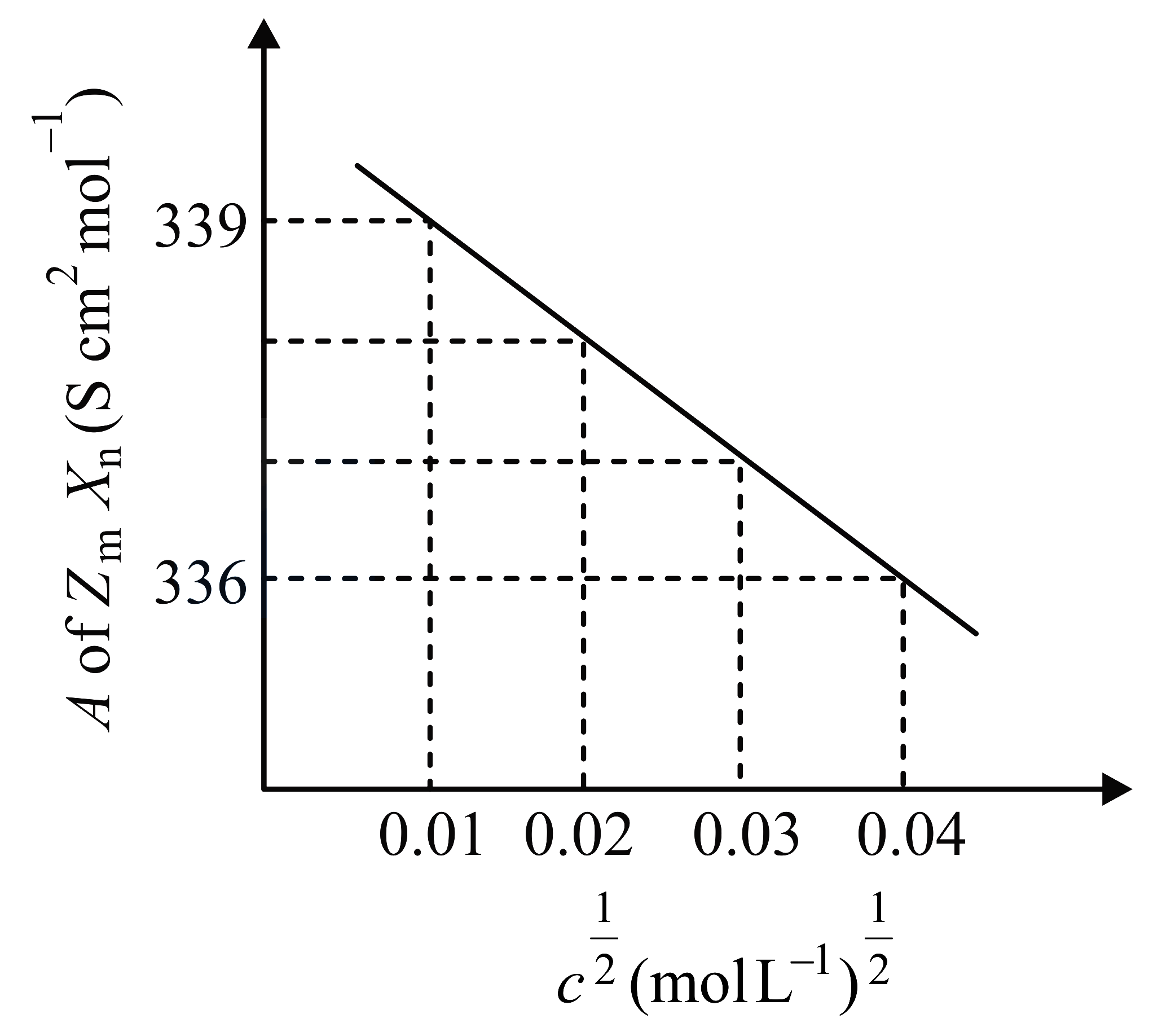

${\lambda }^0$ is the limiting molar conductivity of ions The plot of molar conductivity $\left(\Lambda \right)$ of ${\mathrm{Z}}_{\mathrm{m}}{\mathrm{X}}_{\mathrm{n}}$ vs ${\mathrm{c}}^{\frac{1}{2}}$ is given below. If the numerical value has more than two decimal places, truncate/round-off the value to TWO decimal places.

Let $\overrightarrow{x}, \overrightarrow{y}$ and $\overrightarrow{z}$ be three vectors each of magnitude $\sqrt{2}$ and the angle between each pair of them is $\frac{\pi }{3}.$ If $\overrightarrow{a}$ is a non - zero vector perpendicular to $\overrightarrow{x}$ and $\overrightarrow{y} \times \overrightarrow{z}$ and $\overrightarrow{b}$ is a non - zero vector perpendicular to $\overrightarrow{y}$ and $\overrightarrow{z} \times \overrightarrow{x}$ , then

A current carrying infinitely long wire is kept along the diameter of a circular wire loop, without touching it, the correct statement(s) is(are)
