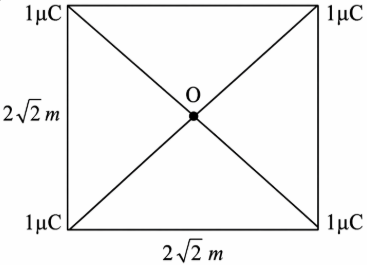

Charges \(1 \mu C\) are placed at each of the four corners of a square of side \(2 \sqrt{2} m\). The potential at the point of intersection of the diagonals is _________.

A \(18 \times 10^3 V\)
B 1800 V
C \(18 \sqrt{2} \times 10^3 V\)
D None of these.

Verified Solution

Answer & Solution

Correct Answer

(A) \(18 \times 10^3 V\)

Step-by-step Solution

Detailed explanation

(A)

digonal length\(=\sqrt{(2 \sqrt{2})^2+(2 \sqrt{2})^2}=4 m\)
distance of each vertex from the\(\text { center }=\frac{4}{2}=2 m\)
potential at center
\(\begin{aligned} & V =\frac{4 k q}{r} \\ \therefore & V=\frac{4 \times 9 \times 10^9 \times 1 \times 10^{-6}}{2} \\ \therefore & V=18 \times 10^3 V\end{aligned}\)

Apply the relevant identity from the chapter and substitute the values established in the previous step, keeping the original constraint in view.

Use the simplified expression to isolate the unknown, then plug the result back into the question setup to confirm the working is internally consistent.

Cross-check against a boundary or limiting case. Both the dimensional balance and the qualitative behaviour at the extreme should agree with the candidate answer.

Combine the steps above to identify the correct option. The remaining choices each fail at least one of the consistency, dimensional, or boundary checks.
