AP EAMCET · PHYSICS · Electromagnetic Induction
When current in a coil changes from 2 A to 5 A in a time of 0.3 s, if the emf induced in the coil is 40 mV, then the self inductance of the coil is
- A 4 H
- B 4 mH
- C 40 mH
- D \(4 \mu \mathrm{H}\)
Answer & Solution
Correct Answer
(B) 4 mH
Step-by-step Solution
Detailed explanation
\( \varepsilon = L \frac{\Delta I}{\Delta t} \) \( 40 \times 10^{-3} \, \mathrm{V} = L \frac{(5 \, \mathrm{A} - 2 \, \mathrm{A})}{0.3 \, \mathrm{s}} \) \( 40 \times 10^{-3} = L \frac{3}{0.3} \) \( L = \frac{40 \times 10^{-3}}{10} \, \mathrm{H} \)…
See the Complete Solution
Get step-by-step explanations for this and 2.5 Lakh+ more JEE, NEET & CET questions.
- Unlock all solutions
- Practice the full chapter
- Track accuracy across PYQs
4.8 rated on Google Play · 14,000+ reviews
More questions from PHYSICS
- A metal ball of mass 100 g at \(20^{\circ} \mathrm{C}\) is dropped in 200 ml of water at \(80^{\circ} \mathrm{C}\). If the resultant temperature is \(70^{\circ} \mathrm{C}\), then the ratio of specific heat of the metal to that of water isAP EAMCET 2024 Medium
- 90. If the dipole moment of a short bar magnet is \(1.25 \mathrm{~A}-\mathrm{m}^2\), find the magnetic field on its axis at a distance of \(0.5 \mathrm{~m}\) from the centre of the magnet.AP EAMCET 2020 Easy
- At absolute zero temperature, an intrinsic semiconductor behaves asAP EAMCET 2025 Easy

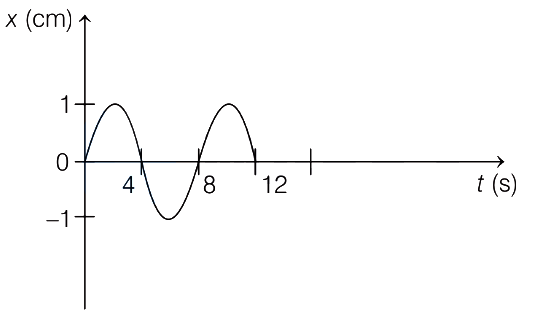

- For a particle executing simple harmonic motion, the displacement-time \((x-t)\) graph is as shown in the figure. The acceleration of the particle at \(t=\frac{4}{3} \mathrm{~s}\) is
