WBJEE · Physics · Ray Optics
The distance between an object and a divergent lens is \(\mathrm{m}\) times the focal length of the lens. The linear magnification produced by the lens is
- A \(\mathrm{m}\)
- B \(\frac{1}{\mathrm{~m}}\)
- C \(m+1\)
- D \(\frac{1}{m+1}\)
Answer & Solution
Correct Answer
(D) \(\frac{1}{m+1}\)
Step-by-step Solution
Detailed explanation
\(\mathrm{u}=-\mathrm{mf}\) \(\frac{1}{\mathrm{v}}-\frac{1}{(-m f)}=-\frac{1}{f} \Rightarrow \frac{1}{\mathrm{v}}=-\frac{1}{f}\left(1+\frac{1}{m}\right) \Rightarrow-\frac{\mathrm{v}}{\mathrm{u}}=\left(\frac{1}{1+m}\right)\)
See the Complete Solution
Get step-by-step explanations for this and 2.5 Lakh+ more JEE, NEET & CET questions.
- Unlock all solutions
- Practice the full chapter
- Track accuracy across PYQs
4.8 rated on Google Play · 14,000+ reviews
More questions from Physics
- In a transistor output characteristicy commonly used in common emitter configuration, the base current \(I_{B}\), the collector current \(I_{C}\) and the collector-emitter voltage \(V_{C E}\) have values of the following orders of magnitude in the active regionWBJEE 2014 Medium
- In which of the following pairs, the two physical quantities have different dimensions?WBJEE 2014 Easy
- A particle with charge \(e\) and mass \(m\), moving along the \(X\) -axis with a uniform speed \(u\), enters a region where a uniform electric field \(E\) is acting along the \(Y\) -axis. The particle starts to move in a parabola. Its focal length (neglecting any effect of gravity) isWBJEE 2017 Medium
- A common emitter transistor amplifier is connected with a load resistance of \(6 \mathrm{k} \Omega\). When a small a.c. signal of 15 \(\mathrm{mV}\) is added to the base emitter voltage, the alternating base current is \(20 \mu \mathrm{A}\) and the alternating collector current is \(1.8 \mathrm{~mA}\). What is the voltage gain of the amplifier?WBJEE 2020 Medium

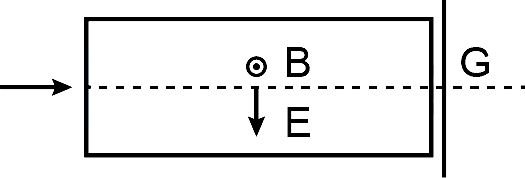

- A stream of electrons and protons are directed towards a narrow slit in a screen (see figure). The intervening region has a uniform electric field (vertically downwards) and a uniform magnetic field \(\mathbf{B}\) (out of the plane of the figure) as shown. Then
WBJEE 2014 Easy - Work done for a certain spring when it is streched to 1mm from mean position is 10J amount of work that must be done on the spring to stretch it further by \(1 \mathrm{mm}\) isWBJEE 2016 Medium
More PYQs from WBJEE
- A rectangular coil carrying-current is placed in a non-uniform magnetic field. On that coil, the totalWBJEE 2016 Easy

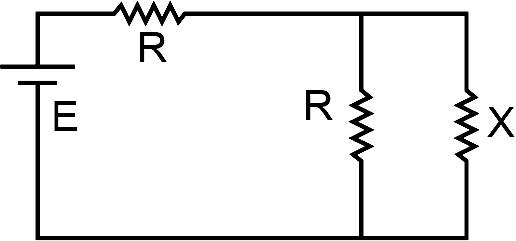

- Consider the circuit shown in the figure.
