WBJEE · Physics · Ray Optics
The convex lens \(\left(L_1\right.\) and \(\left.L_2\right)\) of equal focal length \(f\) are placed at a distance \(\frac{f}{2}\) apart. An object is placed at a distance \(4 f\) in the left of \(L_1\) as shown in figure. The final image is at
- A \(\frac{5 \mathrm{f}}{11}\) right of \(\mathrm{L}_2\)
- B \(\frac{5 f}{11}\) left of \(L_2\)
- C \(5 f\) right of \(\mathrm{L}_2\)
- D 5 left of \(L_2\)
Answer & Solution
Correct Answer
(A) \(\frac{5 \mathrm{f}}{11}\) right of \(\mathrm{L}_2\)
Step-by-step Solution
Detailed explanation
\begin{aligned} & \frac{1}{v}-\frac{1}{u}=\frac{1}{f} \\ & \frac{1}{v}-\frac{1}{-4 f}=\frac{1}{f} \Rightarrow \frac{1}{v}=\frac{1}{f}-\frac{1}{4 f} \Rightarrow \frac{1}{v}=\frac{4-1}{4 f} \Rightarrow v=\frac{4 f}{3} \\ & u_2=\frac{4 f}{3}-\frac{f}{2}=\frac{8 f-3 f}{6}…
See the Complete Solution
Get step-by-step explanations for this and 2.5 Lakh+ more JEE, NEET & CET questions.
- Unlock all solutions
- Practice the full chapter
- Track accuracy across PYQs
4.8 rated on Google Play · 14,000+ reviews
More questions from Physics
- Two identical springs are connected to mass \(\mathrm{m}\) as shown \((\mathrm{k}=\) spring constant). If the period of the configuration in (a) is \(2 \mathrm{~S}\), the period of the configuration (b) isWBJEE 2011 Medium
- \(A\) whistle whose air column is open at both ends has a fundamental frequency of \(5100 \mathrm{Hz}\). If the speed of sound in air is \(340 \mathrm{ms}^{-1}\), the length of the whistle, in \(\mathrm{cm}\), isWBJEE 2014 Medium
- The elastic potential energy of a strained body isWBJEE 2024 Easy
- Consider a particle of mass 1 gm and charge 1.0 Coulomb is at rest. Now the particle is subjected to an electric field \(E(t)=E_0 \sin \omega t\) in the \(x\)-direction, where \(E_0=2\) Newton/Coulomb and \(\omega=1000 \mathrm{rad} / \mathrm{sec}\). The maximum speed attained by the particle isWBJEE 2025 Medium
- Two simple harmonic motions are given by \(x_{1}=a \sin \omega t+a \cos \omega t\) and \(x_{2}=a \sin \omega t+\frac{a}{\sqrt{3}} \cos \omega t\) The ratio of the amplitudes of first and second motion and the phase difference between them are respectivelyWBJEE 2013 Easy
- Consider the vectors
\(\overrightarrow{\mathrm{A}}=\hat{\mathrm{i}}+\hat{\mathrm{j}}-\hat{\mathrm{k}}, \overrightarrow{\mathrm{B}}=2 \hat{\mathrm{i}}-\hat{\mathrm{j}}+\hat{\mathrm{k}}, \overrightarrow{\mathrm{C}}=\frac{1}{\sqrt{5}}(\hat{\mathrm{i}}-2 \hat{\mathrm{j}}+2 \hat{\mathrm{k}})\). What is the value of \(\overrightarrow{\mathrm{C}} .(\overrightarrow{\mathrm{A}} \times \overrightarrow{\mathrm{B}}) ?\)WBJEE 2020 Medium
More PYQs from WBJEE
-

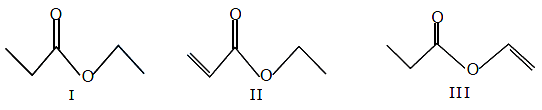

The correct order of \(\mathrm{C}=\mathrm{O}\) bond length in ethyl propanoate (I), ethyl propenoate (II) and ethenyl propanoate (III) isWBJEE 2023 Medium -
