WBJEE · Physics · Magnetic Effects of Current
As shown in figure, a rectangular loop of length ' a' and width ' \(b\) ' and made of a conducting material of uniform crosssection is kept in a horizontal plane where a uniform magnetic field of intensity \(B\) is acting vertically downward. Resistance per unit length of the loop is \(\lambda \Omega / \mathrm{m}\). If the loop is pulled with uniform velocity ' \(v\) ' in horizontal direction, which of the following statement is / are true?
- A Current in the loop \(\mathrm{I}=\frac{\mathrm{Bbv}}{\lambda(2 \mathrm{~b}+2 \mathrm{a})}\)
- B Current will be in clockwise direction, looking from the top.
- C \(V_P-V_S=V_Q-V_R\), where \(V\) is the potential
- D There cannot be any induction in part SR.
Answer & Solution
Correct Answer
(D) There cannot be any induction in part SR.
Step-by-step Solution
Detailed explanation
\(\varepsilon=B \times b \times v\) \(\mathrm{i}=\frac{\varepsilon}{\mathrm{R}_{\text {total }}}=\frac{\varepsilon}{\lambda(2 \mathrm{~b}+2 \mathrm{a})}\) Current is anticlockwise \[ V_P-V_S \neq V_Q-V_R \] Also SR, \(\vec{\ell} \| \vec{v} ;\) So \(\varepsilon=0\)
See the Complete Solution
Get step-by-step explanations for this and 2.5 Lakh+ more JEE, NEET & CET questions.
- Unlock all solutions
- Practice the full chapter
- Track accuracy across PYQs
4.8 rated on Google Play · 14,000+ reviews
More questions from Physics
- To which of the following quantities, the radius of the circular path of a charged particle moving at right angles to a uniform magnetic field is directly proportional?WBJEE 2019 Medium
- Two mirrors at an angle \(\theta^{\circ}\) produce 5 images of a point. The number of images produced when \(\theta\) is decreased to \(\theta^{\circ}-30^{\circ}\) isWBJEE 2010 Medium
-
Two wires \(A\) and \(B\) of same length are made of same material. Load \((F)\) vs. elongation \((x)\) graph for these two wires is shown in the figure. Then which of the following statement(s) is / are true?WBJEE 2022 Medium - \[
\text { In the figure below, the capacitance of each capacitor is } 3 \mu \mathrm{F} \text {. The effective capacitance between } \mathrm{A} \text { and } \mathrm{B} \text { is : }
\]
WBJEE 2010 Medium -

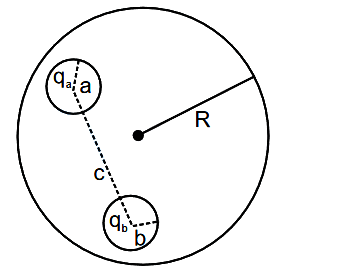

A neutral conducting solid sphere of radius \(\mathrm{R}\) has two spherical cavities of radius a and \(b\) as shown in the figure. Centre to centre distance between two cavities is \(c . q_a\) and \(q_b\) charges are placed at the centres of cavities respectively. The force between \(q_a\) and \(q_b\) isWBJEE 2022 Easy - Under isothermal conditions, two soap bubbles of radii a and b coalesce to form a single bubble of radius c. If the external pressure is \(\mathrm{P}\), then surface tension of the bubbles isWBJEE 2021 Medium
