TS EAMCET · Physics · Waves and Sound
The air columns in two tubes closed at one end vibrating in their fundamental modes produce 2 beats per second. The number of beats produced per second when the same tubes are vibrated in their fundamental mode with their both ends open are
- A \(1\)
- B \(2\)
- C \(3\)
- D \(4\)
Answer & Solution
Correct Answer
(D) \(4\)
Step-by-step Solution
Detailed explanation
\(f_{closed} = \frac{v}{4L}\) \(\left| \frac{v}{4L_1} - \frac{v}{4L_2} \right| = 2\) \(f_{open} = \frac{v}{2L}\) \(\left| \frac{v}{2L_1} - \frac{v}{2L_2} \right| = 2 \times \left| \frac{v}{4L_1} - \frac{v}{4L_2} \right| = 2 \times 2 = 4\)
See the Complete Solution
Get step-by-step explanations for this and 2.5 Lakh+ more JEE, NEET & CET questions.
- Unlock all solutions
- Practice the full chapter
- Track accuracy across PYQs
4.8 rated on Google Play · 14,000+ reviews
More questions from Physics
- A police party is moving in a jeep at a constant speed \(v\). They saw a thief at a distance \(x\) on a motorcycle which is at rest. The moment the police saw the thief, the thief started at constant acceleration \(a\). Which of the following relations is true if the police is able to catch the thief?TS EAMCET 2011 Hard
- Calculate the voltage across \(A B\) terminals in the given circuit,TS EAMCET 2019 Easy
- A ball (initially at rest) is released from the top of a tower. The ratio of work done by the force of gravity, in the first, second and third seconds isTS EAMCET 2015 Easy
- In a circuit, where is resistance and is capacitance which of the following has the dimension of time.TS EAMCET 2022 Easy
- A person initially at rest, starts walking towards east without slipping or skidding. What is the type of friction acting on the person from the ground and in which direction the frictional force acts?TS EAMCET 2023 Easy

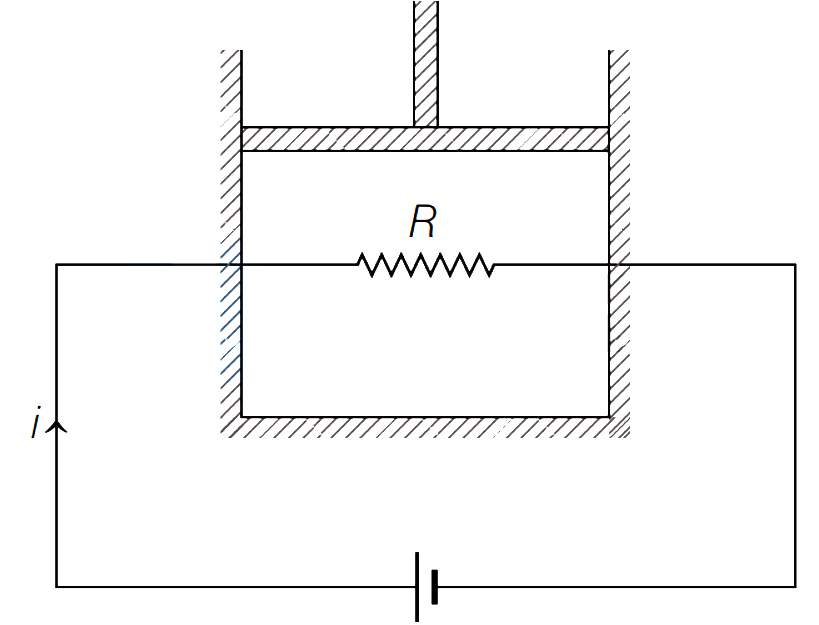

- A \(500 \Omega\) resistor connected to an external battery is placed inside a thermally insulated cylinder fitted with a frictionless piston. The cylinder contains an ideal gas. A current \(i\) of \(200 \mathrm{~mA}\) flows through the resistor as shown in the figure. The mass of the piston is \(10 \mathrm{~kg}\). Assuming \(g=10 \mathrm{~m} / \mathrm{s}^2\), the speed at which the piston will move upward, due to heat dissipated by the resistor, so that the temperature of the gas remains unchanged is
