TS EAMCET · Physics · Electromagnetic Induction
An emf of 2.8 mV is induced in a rectangular loop of area \(150 \mathrm{~cm}^2\) when the current in the loop changes from 3 A to 8 A in a time of 0.2 s. Then the self-inductance of the loop is
- A \(112 \mu \mathrm{H}\)
- B \(56 \mu \mathrm{H}\)
- C \(28 \mu \mathrm{H}\)
- D \(84 \mu \mathrm{H}\)
Answer & Solution
Correct Answer
(A) \(112 \mu \mathrm{H}\)
Step-by-step Solution
Detailed explanation
\(L = \frac{\varepsilon \Delta t}{\Delta I}\) \(L = \frac{2.8 \times 10^{-3} \mathrm{~V} \times 0.2 \mathrm{~s}}{(8 \mathrm{~A} - 3 \mathrm{~A})}\) \(L = \frac{0.56 \times 10^{-3}}{5} \mathrm{~H} = 0.112 \times 10^{-3} \mathrm{~H} = 112 \mu \mathrm{H}\)
See the Complete Solution
Get step-by-step explanations for this and 2.5 Lakh+ more JEE, NEET & CET questions.
- Unlock all solutions
- Practice the full chapter
- Track accuracy across PYQs
4.8 rated on Google Play · 14,000+ reviews
More questions from Physics
- If \(87.5 \%\) of atoms of a radioactive element decay in 6 days, then the fraction of atoms of the element that decay in 8 days isTS EAMCET 2025 Medium
- If \(C\) the velocity of light, \(h\) Planck's constant and \(G\) gravitational constant are taken as fundamental quantities, then the dimensional formula of mass isTS EAMCET 2014 Easy
- projection after sometime with a speed of \(8 \mathrm{~ms}^{-1}\). The maximum height reached by the body is
(Acceleration due to gravity \(=10 \mathrm{~ms}^{-2}\) )TS EAMCET 2025 Easy - If the displacement of a body is given by \(x=3 \cos \left[2 \pi t+\frac{\pi}{4}\right] \mathrm{m}\), then the acceleration of the body at \(t=2 \mathrm{~s}\) isTS EAMCET 2019 Easy
- A radioactive nucleus can decay by two different processes. The half lives of the first and second decay processes are \(5 \times 10^3\) and \(10^5\) years respectively. Then, the effective half-life of the nucleus isTS EAMCET 2015 Medium
- A stone is thrown vertically up from the top end of a window of height 1.8 m with a velocity of \(8 \mathrm{~ms}^{-1}\). The time taken by the stone to cross the window during its downward journey is (Acceleration due to gravity \(=10 \mathrm{~ms}^{-2}\) )TS EAMCET 2024 Medium
More PYQs from TS EAMCET

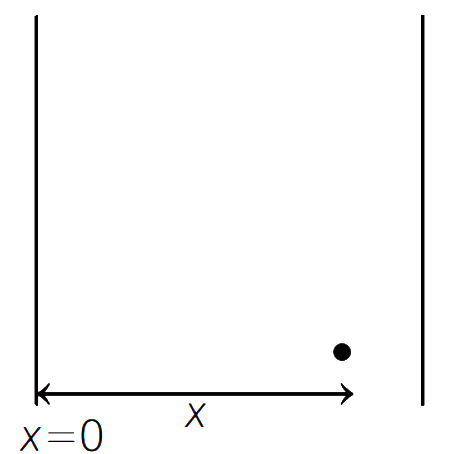

- The space between the two large parallel plates is filled with a material of uniform charge density \(\rho\). Assume that one of the plate is kept at \(x=0\). The potential at any point \(x\) between these plates is given by ( \(A\) and \(B\) are constants).
