In the following combinations of logic gates, the outputs of \(A, B\) and \(C\) are respectively
- A \(0,1,1\)
- B \(0,1,0\)
- C \(1,1,0\)
- D \(1,0,1\)
Answer & Solution
Correct Answer
(C) \(1,1,0\)
Step-by-step Solution
Detailed explanation

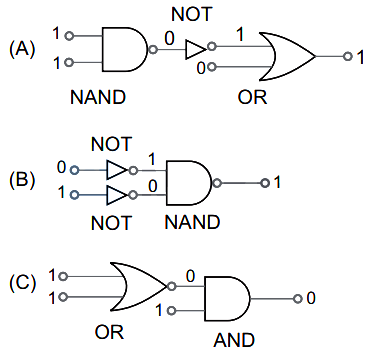

The output gate circuit will be as shown below.
Hence, outputs of A, B and \(C\) are 1,1 and 0 respectively.
Hence, outputs of A, B and \(C\) are 1,1 and 0 respectively.
