KCET · Physics · Capacitance
A parallel plate capacitor with air as the dielectric has capacitance \(C\). A slab of dielectric constant \(K\) and having the same thickness as the separation between the plates is introduced so as to fill one-fourth of the capacitor as shown in the figure. The new capacitance will be
- A \((K+3) \frac{C}{4}\)
- B \((K+2) \frac{C}{4}\)
- C \((K+1) \frac{C}{4}\)
- D \(\frac{K C}{4}\)
Answer & Solution
Correct Answer
(A) \((K+3) \frac{C}{4}\)
Step-by-step Solution
Detailed explanation
The condenser with air as the dielectric has capacitance
\(C_{1}=\frac{\varepsilon_{0}}{d}\left(\frac{3 A}{4}\right)=\frac{3 \varepsilon_{0} A}{3 d}\)
Similarly, the condenser with \(K\) as the dielectric constant has capacitance
\(C_{2}=\frac{\varepsilon_{0} K}{d}\left(\frac{A}{4}\right)=\frac{\varepsilon_{0} A K}{4 d}\)
Since, \(C_{1}\) and \(C_{2}\) are in parallel
\(\begin{aligned}C_{n e t} &=C_{1}+C_{2} \\&=\frac{3 \varepsilon_{0} A}{4 d}+\frac{\varepsilon_{0} A K}{4 d} \\&=\frac{\varepsilon_{0} A}{d}\left[\frac{3}{4}+\frac{K}{4}\right]=\frac{C}{4}(K+3)\end{aligned}\)
\(C_{1}=\frac{\varepsilon_{0}}{d}\left(\frac{3 A}{4}\right)=\frac{3 \varepsilon_{0} A}{3 d}\)
Similarly, the condenser with \(K\) as the dielectric constant has capacitance
\(C_{2}=\frac{\varepsilon_{0} K}{d}\left(\frac{A}{4}\right)=\frac{\varepsilon_{0} A K}{4 d}\)
Since, \(C_{1}\) and \(C_{2}\) are in parallel
\(\begin{aligned}C_{n e t} &=C_{1}+C_{2} \\&=\frac{3 \varepsilon_{0} A}{4 d}+\frac{\varepsilon_{0} A K}{4 d} \\&=\frac{\varepsilon_{0} A}{d}\left[\frac{3}{4}+\frac{K}{4}\right]=\frac{C}{4}(K+3)\end{aligned}\)
See the Complete Solution
Get step-by-step explanations for this and 2.5 Lakh+ more JEE, NEET & CET questions.
- Unlock all solutions
- Practice the full chapter
- Track accuracy across PYQs
4.8 rated on Google Play · 14,000+ reviews
More questions from Physics
- Minority carriers in a \(p\)-type semiconductor areKCET 2007 Easy
- Nature of equipotential surface for a point charge isKCET 2016 Easy
- The displacement of a particle executing SHM is given by \(x=3 \sin \left[2 \pi t+\frac{\pi}{4}\right]\), where \(x\) is in metre and \(t\) is in seconds. The amplitude and maximum speed of the particles isKCET 2022 Medium
- A \(20 \mathrm{~cm}\) length of a certain solution causes right handed rotation of \(38^{\circ}\). A \(30 \mathrm{~cm}\) length of another solution causes left handed rotation of \(24^{\circ}\). The optical rotation caused by \(30 \mathrm{~cm}\) length of a mixture of the above solutions in the volume ratio \(1: 2\) isKCET 2007 Hard
- A stone of mass \( 0.05 \mathrm{~kg} \) is thrown vertically upwards. What is the direction and magnitude of

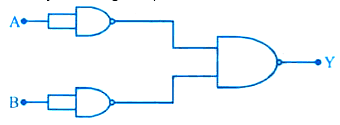

net force on the stone during its upward motion?KCET 2015 Easy - Identify the logic operation carried out by the following circuit.
