KCET · Chemistry · Solid State
A metal crystallises in a body centred cubic lattice with the metallic radius \(\sqrt{3} \AA\). The volume of the unit cell in \(\mathrm{m}^3\) is
- A \(64 \times 10^{-29}\)
- B \(4 \times 10^{-29}\)
- C \(6.4 \times 10^{-29}\)
- D \(4 \times 10^{-10}\)
Answer & Solution
Correct Answer
(C) \(6.4 \times 10^{-29}\)
Step-by-step Solution
Detailed explanation
\(r=\sqrt{3} \AA=\sqrt{3} \times 10^{-10} \mathrm{~m}\)
For bcc,
\(\begin{aligned} & r=\frac{\sqrt{3} a}{4} \\ & a=\frac{4 r}{\sqrt{3}}=\frac{4 \times \sqrt{3} \times 10^{-10}}{\sqrt{3}}=4 \times 10^{-10} \\ & a^3=64 \times 10^{-30}=6.4 \times 10^{-29} \mathrm{~m}^3\end{aligned}\)
Thus, the volume of the unit cell is \(6.4 \times 10^{-29} \mathrm{~m}^3\).
For bcc,
\(\begin{aligned} & r=\frac{\sqrt{3} a}{4} \\ & a=\frac{4 r}{\sqrt{3}}=\frac{4 \times \sqrt{3} \times 10^{-10}}{\sqrt{3}}=4 \times 10^{-10} \\ & a^3=64 \times 10^{-30}=6.4 \times 10^{-29} \mathrm{~m}^3\end{aligned}\)
Thus, the volume of the unit cell is \(6.4 \times 10^{-29} \mathrm{~m}^3\).
See the Complete Solution
Get step-by-step explanations for this and 2.5 Lakh+ more JEE, NEET & CET questions.
- Unlock all solutions
- Practice the full chapter
- Track accuracy across PYQs
4.8 rated on Google Play · 14,000+ reviews
More questions from Chemistry
- The yellow precipitate formed during the chromyl chloride test is chemicallyKCET 2011 Medium
- One mole of ammonia was completely absorbed in one litre solution each of
(a) \( 1 \mathrm{M} \mathrm{HCl} \),
(b) \( 1 \mathrm{M} \mathrm{CH}_{3} \mathrm{COOH} \) and
(c) \( 1 \mathrm{M} \mathrm{H}_{2} \mathrm{SO}_{4} \) at \( 298 \mathrm{~K} \).
The decreasing order for the \( \mathrm{pH} \) of the resulting solutions is
(Given \( \mathrm{K}_{b}\left(\mathrm{NH}_{3}\right)=4.74 \) )KCET 2014 Easy - The test to differentiate between pentan-2-one and pentan-3-one isKCET 2022 Medium
- According to Le Chatelier's principle, in the reaction \(\mathrm{CO}(\mathrm{g})+3 \mathrm{H}_2(\mathrm{~g}) \rightleftharpoons \mathrm{CH}_4(\mathrm{~g})+\mathrm{H}_2 \mathrm{O}(\mathrm{g})\), the formation of methane is favoured by
(a) Increasing the concentration of CO
(b) Increasing the concentration of \(\mathrm{H}_2 \mathrm{O}\)
(c) Decreasing the concentration of \(\mathrm{CH}_4\)
(d) Decreasing the concentration of \(\mathrm{H}_2\)KCET 2025 Easy - The correct statement regarding defects in solid isKCET 2021 Easy
- The IUPAC name of
isKCET 2012 Easy
More PYQs from KCET
- Relate Column I with Column II with regard to predatory behaviour
Column I Column II (A) Calotropis (i) Invertebrates (B) Pisaster (ii) Distasteful (C) Monarch butterfly (iii) Cryptically coloured (D) Frogs (iv) Cardio glycosides KCET 2021 Easy - The volume of a nucleus is directly proportional toKCET 2007 Easy

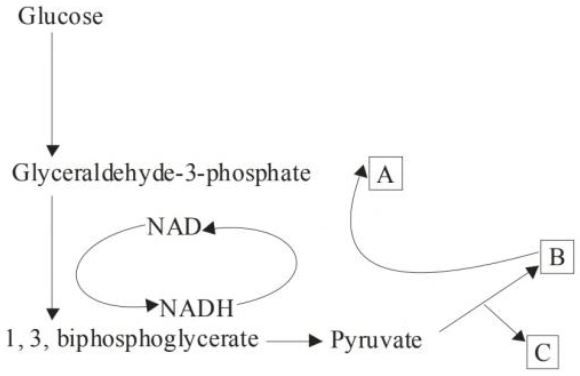

- Choose the correct combination of labelling the molecules involved in the pathway of anerobic respiration in Yeast.
