JEE Advanced · Physics · 15. Oscillations
A metal rod of length \(L\) and mass \(m\) is pivoted at one end. A thin disc of mass \(M\) and radius \(R( < L)\) is attached at its centre to the free end of the rod. Consider two ways the disc is attached. Case A-the disc is not free to rotate about its centre and case \(B\)-the disc is free to rotate about its centre. The rod-disc system performs
SHM in vertical plane after being released from the same displaced position. Which of the following statement(s) is/are true?
- A Restoring torque in case \(A=\) Restoring torque in case \(B\)
- B Restoring torque in case \(A < \) Restoring torque in case \(B\)
- C Angular frequency for case \(A>\) Angular frequency for case \(B\)
- D Angular frequency for case \(A < \) Angular frequency for case \(B\)
Answer & Solution
Correct Answer
(B) Restoring torque in case \(A < \) Restoring torque in case \(B\)
Step-by-step Solution
Detailed explanation
\(\tau_A=\tau_B=m g \frac{L}{2} \sin \theta+\operatorname{MgL} \sin \theta\)
\(=\) Restoring torque about point \(O\).
In case \(A\), moment of inertia will be more. Hence, angular acceleration \((\alpha=\tau / I)\) will be less. Therefore, angular frequency will be less.
\(\therefore\) Correct options are (a) and (d).
Analysis of Question
Question is difficult from my point of view. Because this type of SHM is rarely taught in the class and questions of this type are not given in standard books.
\(=\) Restoring torque about point \(O\).
In case \(A\), moment of inertia will be more. Hence, angular acceleration \((\alpha=\tau / I)\) will be less. Therefore, angular frequency will be less.
\(\therefore\) Correct options are (a) and (d).
Analysis of Question
Question is difficult from my point of view. Because this type of SHM is rarely taught in the class and questions of this type are not given in standard books.
See the Complete Solution
Get step-by-step explanations for this and 2.5 Lakh+ more JEE, NEET & CET questions.
- Unlock all solutions
- Practice the full chapter
- Track accuracy across PYQs
4.8 rated on Google Play · 14,000+ reviews
More questions from Physics
- Paragraph:
The figure shows a surface \(X Y\) separating two transparent media, medium-1 and medium-2. The lines \(a b\) and \(c d\) represent wavefronts of a light wave travelling in medium-1 and incident on \(X Y\). The lines ef and \(g h\) represent wavefronts of the light wave in medium-2 after refraction.
Question:
The phases of the light wave at \(c, d, e\) and \(f\) are \(\phi_c, \phi_d, \phi_e\) and \(\phi_f\), respectively. It is given that \(\phi_c \neq \phi_f\).JEE Advanced 2007 Medium - In the following circuit and . The charge stored in is
JEE Advanced 2022 Easy - A spherical bubble inside water has radius . Take the pressure inside the bubble and the water pressure to be The bubble now gets compressed radially in an adiabatic manner so that its radius becomes . For the magnitude of the work done in the process is given by where is a constant and . The value of is______JEE Advanced 2020 Hard
- Two beams of red and violet colours are made to pass separately through a prism (angle of the prism is \(60^{\circ}\) ). In the position of minimum deviation, the angle of refraction will beJEE Advanced 2008 Easy
- Paragraph :
A wooden cylinder of diameter \(4 r\), height \(H\) and density \(\rho / 3\) is kept on a hole of diameter \(2 r\) of a tank, filled with liquid of density \(\rho\) as shown in the figure.
Question :
If height \(h_2\) of water level is further decreased, thenJEE Advanced 2006 Hard - In a circuit, a metal filament lamp is connected in series with a capacitor of capacitance \(\mathrm{C} \mu F\) across a \(200 \mathrm{~V}, 50 \mathrm{~Hz}\) supply. The power consumed by the lamp is \(500 \mathrm{~W}\) while the voltage drop across it is \(100 \mathrm{~V}\). Assume that there is no inductive load in the circuit. Take \(r m s\) values of the voltages. The magnitude of the phaseangle (in degrees) between the current and the supply voltage is \(\varphi\). Assume, \(\pi \sqrt{3} \approx 5\).
The value of is _____.JEE Advanced 2021 Medium
More PYQs from JEE Advanced
- Let , where , be a hyperbola in the xy-plane whose conjugate axis subtends an angle of at one of its vertices . Let the area of the triangle be .
The correct option is:LIST-I LIST-II A. The length of the conjugate axis of is P. B. The eccentricity of is Q. C. The distance between the foci of is R. D. The length of the latus rectum of is S. JEE Advanced 2018 Medium - Paragraph:
Consider the circle \(x^2+y^2=9\) and the parabola \(y^2=8 x\). They intersect at \(P\) and \(Q\) in the first and the fourth quadrants, respectively. Tangents to the circle at \(P\) and \(Q\) intersect the \(\mathrm{X}\)-axis at \(R\) and tangents to the parabola at \(P\) and \(Q\) intersect the \(\mathrm{X}\)-axis at \(S\).Question:
The radius of the incircle of the \(\triangle P Q R\) isJEE Advanced 2007 Easy - The freezing point (in \({ }^{\circ} \mathrm{C}\) ) of solution containing \(0.1 \mathrm{~g}\) of \(\mathrm{K}_3\left[\mathrm{Fe}(\mathrm{CN})_6\right]\) (molecular weight 329\()\) in \(100 \mathrm{~g}\) of water \(\left(K_f=1.86 \mathrm{~K} \mathrm{~kg} \mathrm{~mol}^{-1}\right)\) isJEE Advanced 2011 Easy

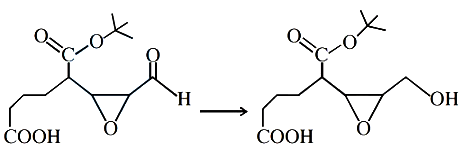

- Reagent(s) which can be used to bring about the following transformation is(are)
