When two identical cells are connected either in series or in parallel across \(2 \Omega\) resistor they send the same current through it. The internal resistance of each cell is ________.
- A \(0.5 \Omega\)
- B \(1.5 \Omega\)
- C \(1 \Omega\)
- D \(2 \Omega\)
Answer & Solution
Correct Answer
(D) \(2 \Omega\)
Step-by-step Solution
Detailed explanation
(D)

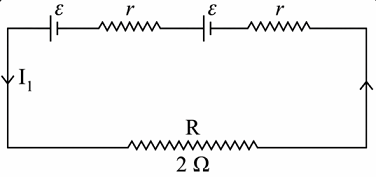

for series connection
current flowing through circuit
\(\begin{array}{l} I _1=\frac{2 \varepsilon}{ R +2 r} \\ I _1=\frac{2 \varepsilon}{2+2 r}\end{array}\)

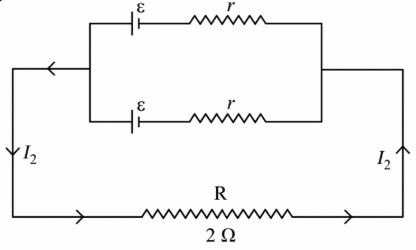

for parallel connection
current flowing through circuit
\(\begin{array}{l} I _2=\frac{\varepsilon}{ R +\frac{r}{2}} \\ I _2=\frac{\varepsilon}{2+\frac{r}{2}}=\frac{2 \varepsilon}{4+r}\end{array}\)
As current is same in both connection
\(I_1=I_2\)
\(\begin{aligned} \frac{2 \varepsilon}{2+2 r} & =\frac{2 \varepsilon}{4+r} \\ 4+r & =2+2 r \\ 2 & =r \\ r & =2 \Omega\end{aligned}\)
for series connection
current flowing through circuit
\(\begin{array}{l} I _1=\frac{2 \varepsilon}{ R +2 r} \\ I _1=\frac{2 \varepsilon}{2+2 r}\end{array}\)
for parallel connection
current flowing through circuit
\(\begin{array}{l} I _2=\frac{\varepsilon}{ R +\frac{r}{2}} \\ I _2=\frac{\varepsilon}{2+\frac{r}{2}}=\frac{2 \varepsilon}{4+r}\end{array}\)
As current is same in both connection
\(I_1=I_2\)
\(\begin{aligned} \frac{2 \varepsilon}{2+2 r} & =\frac{2 \varepsilon}{4+r} \\ 4+r & =2+2 r \\ 2 & =r \\ r & =2 \Omega\end{aligned}\)
