AP EAMCET · PHYSICS · Oscillations
The displacement of a particle executing simple harmonic motion is \(y=\mathrm{A} \sin (2 \mathrm{t}+\phi) m\), where \(t\) is time in second and \(\phi\) is phase angle. At time \(t=0\), the displacement and velocity of the particle are 2 m and \(4 \mathrm{~ms}^{-1}\). The phase angle, \(\phi=\)
- A \(60^{\circ}\)
- B \(30^{\circ}\)
- C \(45^{\circ}\)
- D \(90^{\circ}\)
Answer & Solution
Correct Answer
(C) \(45^{\circ}\)
Step-by-step Solution
Detailed explanation
\(\begin{aligned} & \text {For } S H M, y=A \sin (2 t+\phi) \\ \therefore & v=2 A \cos (2 t+\phi) \\ \text {At } & t=0, y=2 m, v=4 ms^{-1}\end{aligned}\) \(\therefore 2=a \sin (2 \times 0+\phi) \Rightarrow \sin \phi=\frac{2}{A}...(i)\) Also,…
See the Complete Solution
Get step-by-step explanations for this and 2.5 Lakh+ more JEE, NEET & CET questions.
- Unlock all solutions
- Practice the full chapter
- Track accuracy across PYQs
4.8 rated on Google Play · 14,000+ reviews
More questions from PHYSICS
- The radius of germanium \((\mathrm{Ge})\) nuclide is measured to be twice the radius of \({ }_4^9 \mathrm{Be}\). The number of nucleons in Ge will beAP EAMCET 2016 Easy
- The temperature of the earth without green house effect will beAP EAMCET 2023 Medium
- A particle of mass ' \(m\) ' at rest on a rough horizontal surface with a coefficient of friction ' \(\mu\) ' is given a velocity ' \(u\) '. The average power impaired by friction before it stopsAP EAMCET 2024 Medium
- A wheel which is initially at rest is subjected to a constant angular acceleration about its axis. It rotates through an angle of \(15^{\circ}\) in time \(t\) sec. The increase in angle through which it rotates in the next \(2 t \mathrm{sec}\) isAP EAMCET 2014 Medium
- If the maximum velocity and maximum acceleration of a particle executing simple harmonic motion are respectively \(5 \mathrm{~m} \mathrm{~s}^{-1}\) and \(10 \mathrm{~m} \mathrm{~s}^{-2}\), then the time period of oscillation of the particle isAP EAMCET 2025 Medium
- In hydrogen spectrum, the shortest wavelengths of Lyman and Balmer series are \(\lambda_1\) and \(\lambda_2\) respectively. The Rydberg constant of hydrogen isAP EAMCET 2023 Hard
More PYQs from AP EAMCET
- The locus of the point on the curve \(y=\sin x\) where the tangent drawn at that point always passes through the point \((0, \pi)\) isAP EAMCET 2023 Easy
- A cannon ball is fired from the top of a \(55 \mathrm{~m}\) high cliff with an initial speed of \(50 \mathrm{~m} \mathrm{~s}^{-1}\). The speed of the cannon ball while hitting the ground in \(\mathrm{m} \mathrm{s}^{-1}\) (acceleration due to. gravity \(=10 \mathrm{~ms}^{-2}\) )AP EAMCET 2022 Easy
- Equation of the plane passing through the intersection of the lines \(\frac{x-1}{1}=\frac{y-2}{2}=\frac{z-5}{-3}\) and \(\frac{x+5}{3}=\frac{y-4}{-1}=\frac{z+3}{4}\) and parallel to the \(x y\)-plane isAP EAMCET 2020 Easy

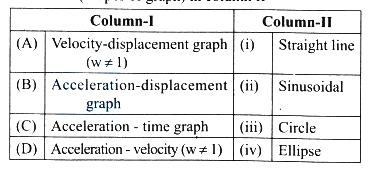

- For a particle executing simple harmonic motion, match the following statements (conditions) from column I to statements (shapes of graph) in column II
