AP EAMCET · PHYSICS · Current Electricity
The current '' in the circuit shown in the figure is
- A
- B
- C
- D
Answer & Solution
Correct Answer
(A)
Step-by-step Solution
Detailed explanation
In the given question, Resistance in series with 2ε is not given, assuming it to be R.The above circuit can be redrawn as,Using equivalent battery for the dotted portion shown in the figure below,εeq=εR+2εR1R+1R=1.5ε and Req=R2. Therefore,i=3-1.5ε2.5+0.5R=ε2R
See the Complete Solution
Get step-by-step explanations for this and 2.5 Lakh+ more JEE, NEET & CET questions.
- Unlock all solutions
- Practice the full chapter
- Track accuracy across PYQs
4.8 rated on Google Play · 14,000+ reviews
More questions from PHYSICS
- The potential is varying with distance \((\mathrm{x})\) as \(\mathrm{V}=\frac{1}{2}\) \(\left(\mathrm{y}^2-4 \mathrm{x}\right)\) volt. The electric field at \(\mathrm{x}=1 \mathrm{~m}\) and \(\mathrm{y}=1 \mathrm{~m}\) isAP EAMCET 2023 Easy

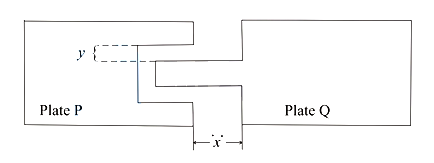

- Two metal plates and of same material are arranged as shown in the figure. If both the plates are uniformly heated through same range of temperature, then
