AP EAMCET · PHYSICS · Capacitance
Four capacitors are connected as shown in the figure. If \(\mathrm{C}_1, \mathrm{C}_2, \mathrm{C}_3\) and \(\mathrm{C}_4\) are in the ratio of \(1: 2: 3: 4\), then the ratio of the charges on the capacitors \(C_2\) and \(C_4\) is
- A \(1: 4\)
- B \(2: 3\)
- C \(6: 11\)
- D \(3: 22\)
Answer & Solution
Correct Answer
(D) \(3: 22\)
Step-by-step Solution
Detailed explanation
\(C_1=C, C_2=2C, C_3=3C, C_4=4C\) \(\frac{1}{C_{123}} = \frac{1}{C_1} + \frac{1}{C_2} + \frac{1}{C_3} = \frac{1}{C} + \frac{1}{2C} + \frac{1}{3C} = \frac{6+3+2}{6C} = \frac{11}{6C}\) \(C_{123} = \frac{6C}{11}\) \(Q_2 = Q_{123}\) \(V = V_{123} = V_4\)…
See the Complete Solution
Get step-by-step explanations for this and 2.5 Lakh+ more JEE, NEET & CET questions.
- Unlock all solutions
- Practice the full chapter
- Track accuracy across PYQs
4.8 rated on Google Play · 14,000+ reviews
More questions from PHYSICS
- A body of mass 30 kg moving with a velocity \(20 \mathrm{~ms}^{-1}\) undergoes one dimensional elastic collision with another ball of same mass moving in the opposite direction with a velocity of \(30 \mathrm{~ms}^{-1}\). After collision the velocities of first and second bodies respectively areAP EAMCET 2024 Medium

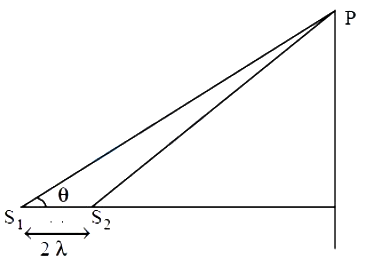

- In Young's double slit experiment the slits are horizontal. The intensity at a point ' \(\mathrm{P}\) ' on the screen shown in the figure is \(\frac{\mathrm{I}_0}{4}\) where \(\mathrm{I}_0\) is maximum intensity. If the distance between the two slits \(S_1\) and \(S_2\) is \(2 \lambda\), then the value of ' \(\theta\) ' is
