AP EAMCET · PHYSICS · Magnetic Properties of Matter
A material of \(0.25 \mathrm{~cm}^2\) cross-sectional area is placed in a magnetic field of strength \((\mathrm{H}) 1000 \mathrm{Am}^{-1}\). Then, the magnetic flux produced is
(Susceptibility of material is 313)
(Permeability of free space, \(\mu_0=4 \pi \times 10^{-7} \mathrm{Hm}^{-1}\) )
- A \(8.33 \times 10^{-8} \mathrm{~Wb}\)
- B \(1.84 \times 10^{-6} \mathrm{~Wb}\)
- C \(9.87 \times 10^{-6} \mathrm{~Wb}\)
- D \(3.16 \times 10^{-6} \mathrm{~Wb}\)
Answer & Solution
Correct Answer
(C) \(9.87 \times 10^{-6} \mathrm{~Wb}\)
Step-by-step Solution
Detailed explanation
\begin{aligned} & \text { Magnetic flux } \phi=B A=\mu H A \\ & =\mu_0\left(1+\chi_{\mathrm{m}}\right) H A\left[\because \mu=\mu_0\left(1+\chi_m\right)\right] \\ & =4 \pi \times 10^{-3} \times(1+313) \times 1000 \times 0.25 \times 10^{-4} \\ & =9.87 \times 10^{-6}…
See the Complete Solution
Get step-by-step explanations for this and 2.5 Lakh+ more JEE, NEET & CET questions.
- Unlock all solutions
- Practice the full chapter
- Track accuracy across PYQs
4.8 rated on Google Play · 14,000+ reviews
More questions from PHYSICS
- X-rays of wavelength \(0.140 \mathrm{~nm}\) are scattered from a block of carbon. What will be the wavelengths of \(X\)-rays scattered at \(90^{\circ}\) ?AP EAMCET 2008 Medium
- Two masses \(m_1\) and \(m_2\) are connected by a light string passing over smooth pulley. When set free \(m_1\) moves downwards by 3 m in 3 s . The ratio of \(\frac{m_1}{m_2}\) is \(\left(\mathrm{g}=10 \mathrm{~ms}^{-2}\right)\)AP EAMCET 2024 Easy
- The equation of motion of a particle executing simple harmonic motion is \(4 \frac{\mathrm{d}^2 \mathrm{y}}{\mathrm{dt}^2}+\pi^2 \mathrm{y}=0\) where \(y\) is in metres and \(t\) is in seconds. The time period of oscillation of the particle isAP EAMCET 2023 Medium
- If the values of the temperature of a body in Fahrenheit and Celcius scales are in the ratio of \(13: 5\), then the temperature of the body isAP EAMCET 2025 Easy
- Steam at \(100^{\circ} \mathrm{C}\) is passed into \(1 \mathrm{~kg}\) of water contained in a calorimeter at \(9^{\circ} \mathrm{C}\) till the temperature of water and calorimeter is increased to \(90^{\circ} \mathrm{C}\). The mass of the steam condensed is nearly
(water equivalent of calorimeter \(=0.1 \mathrm{~kg}\), specific heat of water \(=1 \mathrm{calg}^{-1}{ }^{\circ} \mathrm{C}^{-1}\)

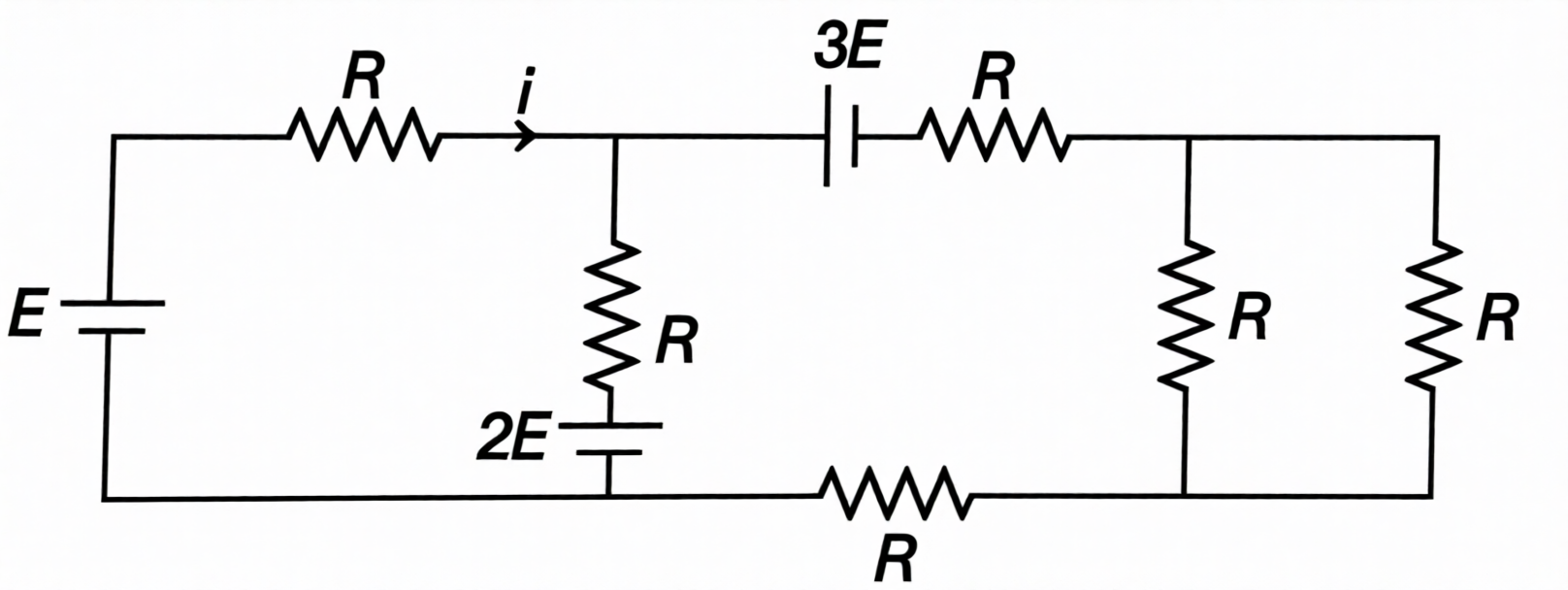

and latent heat of vaporisation \(=540 \mathrm{calg}^{-1}\) )AP EAMCET 2018 Medium - The current \(i\) in the circuit given below is
AP EAMCET 2022 Easy
