WBJEE · Physics · Thermodynamics
A container \(\mathrm{AB}\) in the shape of a rectangular parallelopiped of length \(5 \mathrm{~m}\) is divided internally by a movable partition \(\mathrm{P}\) as shown in the figure. The left compartment is filled with a given mass of an ideal gas of molar mass 32 while the right compartment is filled with an equal mass of another ideal gas of molar mass 18 at same temperature. What will be the distance of P from the left wall A when equilibrium is established?
- A \(2.5 \mathrm{~m}\)
- B \(1.8 \mathrm{~m}\)
- C \(3.2 \mathrm{~m}\)
- D \(2.1 \mathrm{~m}\)
Answer & Solution
Correct Answer
(B) \(1.8 \mathrm{~m}\)
Step-by-step Solution
Detailed explanation
Hint: At equilibrium \(\quad P_{1}=P_{2}, T_{1}=T_{2}\) (assuming wall to be conducting) \(\frac{P_{1} V_{1}}{\mu_{1}}=\frac{P_{2} V_{2}}{\mu_{2}}=R T\) \(\frac{(5-x) 32}{m}=\frac{x \times 18}{m}\) So, \(x=3.2 \mathrm{~m}\) Hence the distance of the piston from…
See the Complete Solution
Get step-by-step explanations for this and 2.5 Lakh+ more JEE, NEET & CET questions.
- Unlock all solutions
- Practice the full chapter
- Track accuracy across PYQs
4.8 rated on Google Play · 14,000+ reviews
More questions from Physics
-
For two types of magnetic materials \(A\) and \(B\), variation of \(\frac{1}{\chi}\) ( \(\chi:\) susceptibility) vs. temperature \(T\) is shown in the figure. ThenWBJEE 2021 Easy - Given \(\overrightarrow{\mathrm{A}}=2 \hat{\mathrm{i}}+3 \hat{\mathrm{j}}\) and \(\overrightarrow{\mathrm{B}}=\hat{\mathrm{i}}+\hat{\mathrm{j}}\). The component of vector \(\overrightarrow{\mathrm{A}}\) along vector \(\overrightarrow{\mathrm{B}}\) isWBJEE 2011 Easy
- The height of a waterfall is \(50 \mathrm{~m}\). If \(g=9.8 \mathrm{~ms}^{-2}\) the difference between the temperature at the top and the bottom of the waterfall is:WBJEE 2009 Hard
- A convex lens of focal length \(30 \mathrm{~cm}\) produces 5 times magnified real image of an object. What is the object distance ?WBJEE 2011 Easy
- Equivalent capacitance between \(A\) and \(B\) in the figure is

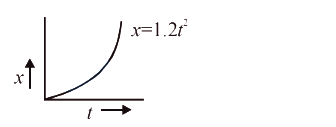

WBJEE 2016 Easy - Figure below shows the distance-time graph of the motion of a car. If follows from the graph that the car is
