NEET · Physics · STD 12 - 14. Semicondutor electronics
The incorrect statement about the property of a Zener diode is
- A Zener voltage remains constant at breakdown
- B It is designed to operate under reverse bias
- C Depletion region formed is very wide
- D \(p\) and \(n\) regions of zener diode are heavily doped
Answer & Solution
Correct Answer
(C) Depletion region formed is very wide
Step-by-step Solution
Detailed explanation
For zener diode \(\rightarrow\) Doping is high Depletion region is thin
See the Complete Solution
Get step-by-step explanations for this and 2.5 Lakh+ more JEE, NEET & CET questions.
- Unlock all solutions
- Practice the full chapter
- Track accuracy across PYQs
4.8 rated on Google Play · 14,000+ reviews
More questions from Physics
- Three resistors having resistances \(\mathrm{r}_{1}, \mathrm{r}_{2}\) and \(\mathrm{r}_{3}\) are connected as shown in the given circuit. The ratio \(\frac{i_{3}}{i_{1}}\) of currents in terms of resistances used in the circuit is :
NEET 2021 Easy - In a series \(LCR\) circuit, the inductance \(L\) is \(10\,mH\), capacitance \(C\) is \(1\,\mu\,F\) and resistance \(R\) is \(100\,\Omega\). The frequency at which resonance occurs is :-NEET 2023 Easy

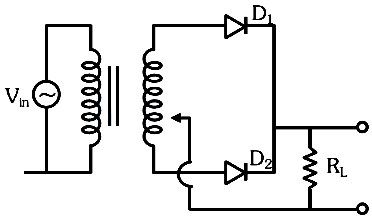

- A full wave rectifier circuit with diodes \(\left(D_1\right)\) and \(\left(D_2\right)\) is shown in the figure. If input supply voltage \(V_{\text {in }}=220 \sin (100 \pi t)\) volt, then what happens at \(t=15\text{msec}\)?
