The current passing through the battery in the given circuit, is :
- A \(2.0 \text { A}\)
- B \(0.5 \text { A}\)
- C \(2.5 \text { A}\)
- D \(1.5\text { A}\)
Answer & Solution
Correct Answer
(B) \(0.5 \text { A}\)
Step-by-step Solution
Detailed explanation

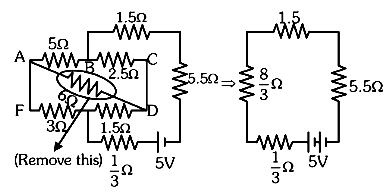

Simplified Diagram:
\(i =\frac{ V }{ R _{ eq }}=\frac{5}{\frac{1}{3}+\frac{8}{3}+1.5+5.5}=\frac{5}{10}=0.5 A\)
\(i =\frac{ V }{ R _{ eq }}=\frac{5}{\frac{1}{3}+\frac{8}{3}+1.5+5.5}=\frac{5}{10}=0.5 A\)
