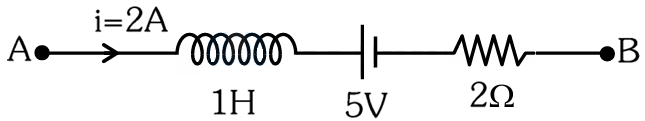

\(\text{AB}\) is a part of an electrical circuit (see figure). The potential difference "\(\text V_\text A-\text V_\text B\)"\(,\) at the instant when current \(\text i =2\text A\) and is increasing at a rate of \(1\text{ amp} /\) second is _______.

  1. A 5 volt
  2. B 6 volt
  3. C 9 volt
  4. D 10 volt
Verified Solution

Answer & Solution

Correct Answer

(D) 10 volt

Step-by-step Solution

Detailed explanation

Apply K.V.L.
\(V_{A}-\frac{LdI}{dt}-5-IR=V_{B}\)
\(V_{A}-V_{B}=\frac{LdI}{dt}+5+IR\)
\(=1 \times 1+5+2 \times 2\)
\(=1+5+4\)
\(=10 V\)
