MHT CET · Physics · Capacitance

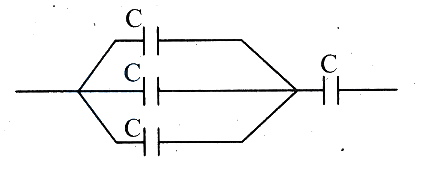

When three capacitors of equal capacities are connected in parallel and one of the same capacity, capacitor is connected in series with the combination. The resultant capacity is \(4.5 \mu \mathrm{~F}\). The capacity of each capacitor is

A \(5 \cdot \mu \mathrm{~F}\)
B \(6 \mu \mathrm{~F}\)
C \(7 \mu \mathrm{~F}\)
D \(8 \mu \mathrm{~F}\)

Verified Solution

Answer & Solution

Correct Answer

(B) \(6 \mu \mathrm{~F}\)

Step-by-step Solution

Detailed explanation

\(\begin{aligned} & \therefore \quad C_{e q}=\frac{3 C \times C}{3 C+C}=\frac{3 C^2}{4 C} \\ & \therefore \quad C_{e q}=\frac{3 C}{4} \\ & \therefore \quad C=\frac{4 C_{e q}}{3}=\frac{4 \times 4.5}{3}=6 \mu \mathrm{~F}\end{aligned}\)

Apply the relevant identity from the chapter and substitute the values established in the previous step, keeping the original constraint in view.

Use the simplified expression to isolate the unknown, then plug the result back into the question setup to confirm the working is internally consistent.

Cross-check against a boundary or limiting case. Both the dimensional balance and the qualitative behaviour at the extreme should agree with the candidate answer.

Combine the steps above to identify the correct option. The remaining choices each fail at least one of the consistency, dimensional, or boundary checks.
