The output Y when all the three inputs A, B, C are first low and then high will be
- A 1,0
- B 1,1
- C 0,0
- D 0,1
Answer & Solution
Correct Answer
(A) 1,0
Step-by-step Solution
Detailed explanation
The correct option is (A).

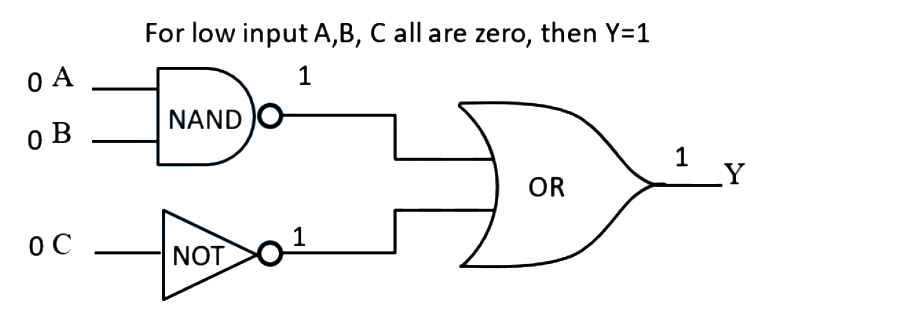

See the figure below:
Therefore, answer is \((1,0)\).

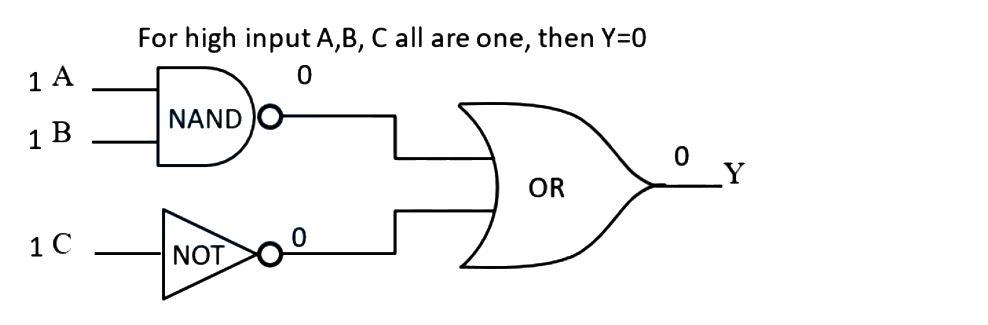

See the figure below:
Therefore, answer is \((1,0)\).
