MHT CET · Physics · Electromagnetic Induction
The magnet is moved towards the coil with speed ' \(\mathrm{V}\) '. The induced e.m.f. in the coil is ' \(\mathrm{e}\) '. The magnet and the coil move away from one another each moving with speed ' \(\mathrm{V}\) '. The induced e.m.f. in the coil is
- A \(e\)
- B \(2e\)
- C \(\frac{\mathrm{e}}{2}\)
- D \(4e\)
Answer & Solution
Correct Answer
(B) \(2e\)
Step-by-step Solution
Detailed explanation
The equation for the induced emf is: \(\mathrm{e}=\mathrm{B} l \mathrm{~V}\)
Relative velocity between the coil and the magnet is:
\(
\mathrm{v}_{\mathrm{r}}=2 \mathrm{v}
\)
\(\therefore\) The new induced emf in the coil is:
\(
\mathrm{e}_{\text {new }}=\mathrm{B} l \cdot 2 \mathrm{~V}=2 \mathrm{e}
\)
Relative velocity between the coil and the magnet is:
\(
\mathrm{v}_{\mathrm{r}}=2 \mathrm{v}
\)
\(\therefore\) The new induced emf in the coil is:
\(
\mathrm{e}_{\text {new }}=\mathrm{B} l \cdot 2 \mathrm{~V}=2 \mathrm{e}
\)
See the Complete Solution
Get step-by-step explanations for this and 2.5 Lakh+ more JEE, NEET & CET questions.
- Unlock all solutions
- Practice the full chapter
- Track accuracy across PYQs
4.8 rated on Google Play · 14,000+ reviews
More questions from Physics
- A rectangular coil of effective area \(0.05 \mathrm{~m}^2\) is suspended freely in a radial magnetic field of \(0.01 \mathrm{~Wb} / \mathrm{m}^2\). The torsional constant of the suspension fiber is \(5 \times 10^{-9} \mathrm{Nm} /\) degree. If a current of \(300 \mu \mathrm{A}\) is passed through it, then the angle through which the coil rotates isMHT CET 2022 Easy
- A beam of light of wavelength \(600 \mathrm{~nm}\) from a distant source falls on a single slit \(1 \mathrm{~mm}\) wide and the resulting diffraction pattern is observed on a screen \(2 \mathrm{~m}\) away. The distance between the first dark fringe on either side of the central bright fringe isMHT CET 2023 Medium
- Two bodies rotate with kinetic energies ' \(E_1\) ' and ' \(E_2\) '. Moment of inertia about their axis of rotation are ' \(I_1\) ' and ' \(I_2\) '. If \(I_1=\frac{I_2}{3}\) and \(\mathrm{E}_1=27 \mathrm{E}_2\), then the ratio of angular momenta ' \(\mathrm{L}_1\) ' to ' \(\mathrm{L}_2\) ' isMHT CET 2021 Medium
- Time period of a simple pendulum will be doubled if weMHT CET 2020 Easy
- If angle of incidence is twice the angle of refraction in a medium of refractive index \(\mu\), then angle of incidence isMHT CET 2009 Medium

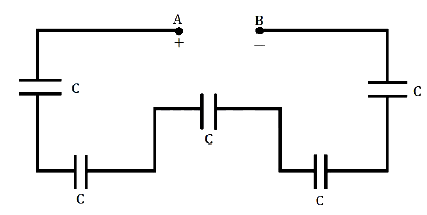

- Five capacitors each of capacity 'C' are connected as shown in figure. If their resultant capacity is \(2 \mu \mathrm{F}\), then the capacity of each condenser is
