The Boolean equation for the circuit given in the figure is
- A
- B
- C
- D
Answer & Solution
Correct Answer
(C)
Step-by-step Solution
Detailed explanation

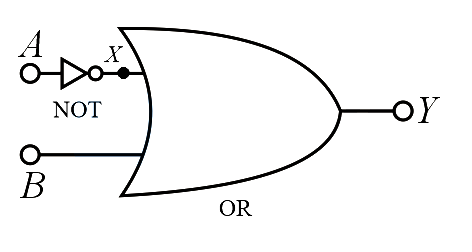

In the above diagram, we have the combination of NOT gate and OR gate.
For NOT gate
\(X=\bar{A}\)
For OR gate
\(Y=X+B\)
\(\Rightarrow Y=\bar{A}+B \quad[\) Using \((1)]\)
Hence, the output expression of the given arrangement of gates is \((\bar{A}+B)\).
