MHT CET · Physics · Semiconductors
Pure Silicon crystal at \(300 \mathrm{~K}\) has equal electron and hole concentration of \(1.5 \times 10^{16} \mathrm{~m}^{-3}\). Doping by indium increases \(n_h=4.5 \times 10^{22} \mathrm{~m}^{-3}\). The \(n_e\) in the doped silicon is:
- A \(5 \times 10^9\)
- B \(2.25 \times 10^{10}\)
- C \(3 \times 10^{12}\)
- D \(9 \times 10^6\)
Answer & Solution
Correct Answer
(A) \(5 \times 10^9\)
Step-by-step Solution
Detailed explanation
In an extrinsic semiconductor:
\(\begin{aligned} & n_e n_h=\left(n_i\right)^2 \\ & n_e \times 4.5 \times 10^{22}=\left(1.5 \times 10^{16}\right)^2 \\ & n_e=\frac{2.25 \times 10^{32}}{4.4 \times 10^{22}} \\ & \therefore n_e=5 \times 10^9\end{aligned}\)
\(\begin{aligned} & n_e n_h=\left(n_i\right)^2 \\ & n_e \times 4.5 \times 10^{22}=\left(1.5 \times 10^{16}\right)^2 \\ & n_e=\frac{2.25 \times 10^{32}}{4.4 \times 10^{22}} \\ & \therefore n_e=5 \times 10^9\end{aligned}\)
See the Complete Solution
Get step-by-step explanations for this and 2.5 Lakh+ more JEE, NEET & CET questions.
- Unlock all solutions
- Practice the full chapter
- Track accuracy across PYQs
4.8 rated on Google Play · 14,000+ reviews
More questions from Physics

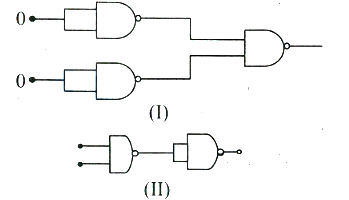

- The combination of NAND gates is shown in figure (I) and (II). For the given inputs, the outputs in both the combinations are respectively.
MHT CET 2024 Easy - Assume that an electric field \(E=20 x^2 \hat{i}\) exists in space. If \(V_0\) is the potential at the origin and \(V_A\) is the potential at \(x=3 \mathrm{~m}\) then, the potential difference \(V_A-V_0\) in volts isMHT CET 2022 Hard

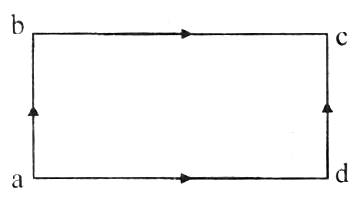

- When a system is taken from state ' \(a\) ' to state ' c ' along a path abc , it is found that \(\mathrm{Q}=80 \mathrm{cal}\) and \(\mathrm{W}=35 \mathrm{cal}\). Along path adc, \(\mathrm{Q}=65 \mathrm{cal}\) the work done W along path adc is
