MHT CET · Physics · Semiconductors

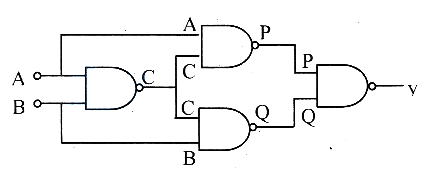

Following combination of gates is equivalent to
- A NAND gate
- B OR gate
- C NOR gate
- D X-OR gate
Answer & Solution
Correct Answer
(D) X-OR gate
Step-by-step Solution

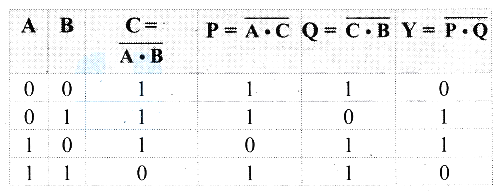

Detailed explanation
\(\therefore \quad\) Given combination of gates is equivalent to an X-OR gate.
