MHT CET · Physics · Capacitance
A parallel plate capacitor having plate area \(A\) and separation \(d\) is charged to a potential difference \(V\). The charging battery is disconnected and the plates are pulled apart to four times the initial separation. The work required to increase the distance between plates is:
- A \(\frac{\varepsilon_0 A V^2}{4 d}\)
- B \(\frac{2 \varepsilon_0 A V^2}{4 d}\)
- C \(\frac{\varepsilon_0 A V^2}{3 d}\)
- D \(\frac{3 \varepsilon_0 A V^2}{2 d}\)
Answer & Solution
Correct Answer
(D) \(\frac{3 \varepsilon_0 A V^2}{2 d}\)
Step-by-step Solution
Detailed explanation
Initial energy: \(\frac{q^2}{2 C}\)
The new capacitance is: \(C_n=\frac{C}{4}\)
Final energy after the change in capacitance is: \(\frac{4 q^2}{2 C}\)
Therefore, magnitude of work done is equal to the change in potential energy,
\(W=\frac{2 q^2}{C}-\frac{q^2}{2 C}=\frac{3 C V^2}{2}=\frac{3 \varepsilon_0 A V^2}{2 d}\)
The new capacitance is: \(C_n=\frac{C}{4}\)
Final energy after the change in capacitance is: \(\frac{4 q^2}{2 C}\)
Therefore, magnitude of work done is equal to the change in potential energy,
\(W=\frac{2 q^2}{C}-\frac{q^2}{2 C}=\frac{3 C V^2}{2}=\frac{3 \varepsilon_0 A V^2}{2 d}\)
See the Complete Solution
Get step-by-step explanations for this and 2.5 Lakh+ more JEE, NEET & CET questions.
- Unlock all solutions
- Practice the full chapter
- Track accuracy across PYQs
4.8 rated on Google Play · 14,000+ reviews
More questions from Physics
- Cyclotron is used toMHT CET 2024 Easy
- In an adiabatic process for an ideal gas, the relation between the universal gas constant ' \(R\) ' and specific heat at constant volume ' \(\mathrm{C}_{\mathrm{v}}\) ' is \(R=0 \cdot 4 C_v\). The pressure ' \(P\) ' of the gas is proportional to the temperature ' T ', of the gas as \(\mathrm{T}^k\). The value of constant ' K ' isMHT CET 2024 Hard
- A hole is drilled half way to the centre of the earth. A body weighs 300 N on the surface of the earth. How much will, it weigh at the bottom of the hole?MHT CET 2019 Medium

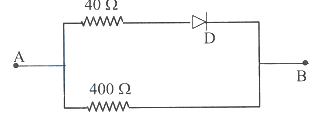

- For the diagram shown, the resistances between points \(\mathrm{A}\) and \(\mathrm{B}\) when ideal diode \(\mathrm{D}\) is forward biased is ' \(R_1\) ' and that when reverse biased is ' \(R_2\) '. The ratio \(R_1: R_2\) is
