MHT CET · Physics · Wave Optics
A parallel monochromatic beam of light is incident normally on a narrow slit. A diffraction pattern is formed on a screen placed perpendicular to the direction of the incident beam. At the first maximum of the diffraction pattern, the phase difference between the rays coming from the edges of the slit is
- A \(\frac{\pi}{4}\)
- B \(\pi\)
- C \(\frac{\pi}{2}\)
- D \(3 \pi\)
Answer & Solution
Correct Answer
(D) \(3 \pi\)
Step-by-step Solution
Detailed explanation
For nth secondary maxima, the path difference \(x\) is the odd multiple of the half of the wavelength, i.e.,
\(x_n=(2 n+1) \frac{\lambda}{2}\)
So, for the first maxima, the phase difference would be:
\(\phi_1=\frac{2 \pi}{\lambda} x_1\)
\(\therefore \phi_1=\frac{2 \pi}{\lambda}\left(\frac{3 \lambda}{2}\right)=3 \pi\)
\(x_n=(2 n+1) \frac{\lambda}{2}\)
So, for the first maxima, the phase difference would be:
\(\phi_1=\frac{2 \pi}{\lambda} x_1\)
\(\therefore \phi_1=\frac{2 \pi}{\lambda}\left(\frac{3 \lambda}{2}\right)=3 \pi\)
See the Complete Solution
Get step-by-step explanations for this and 2.5 Lakh+ more JEE, NEET & CET questions.
- Unlock all solutions
- Practice the full chapter
- Track accuracy across PYQs
4.8 rated on Google Play · 14,000+ reviews
More questions from Physics
- Reverse bias applied to a \(p-n\) junction diodeMHT CET 2022 Easy
- The moment of inertia of a thin uniform rod of length and mass about an axis passing through a point at a distance of from one of its ends and perpendicular to the rod isMHT CET 2018 Medium
- An optician makes spectacles having a combination of a convex lens of focal length 40 cm in contact with a concave lens of focal length 25 cm . The power of this combination of lenses in dioptre isMHT CET 2024 Medium
- A vessel is filled with an ideal gas at a pressure of 10 atm and temperature \(27^{\circ} \mathrm{C} .\) Half of the mass is removed from the vessel and temperature of the remaining gas is increased to \(87^{\circ} \mathrm{C}\). Then the pressure of the gas in the vessel will beMHT CET 2011 Medium
- A ball is dropped on the floor from a height of 20 m . It rebounds to a height of 5 m . Ball remains in contact with floor for 1 s . The average acceleration during contact is
(acceleration due to gravity \(=10 \mathrm{~m} / \mathrm{s}^2\) )MHT CET 2025 Medium - A particle moves along a circular path of radius \(r\) with uniform speed \(v\). The angle described by a particle in one second isMHT CET 2022 Easy
More PYQs from MHT CET
- A cylindrical tube open at both ends, has a vibrating air column of fundamental frequency ' \(\mathrm{f}\) ' in air. The tube is dipped vertically in water so that half of its is in water. The fundamental frequency of the vibrating air column is nowMHT CET 2022 Easy
- Five students are to be arranged on a platform such that the boy \(B_1\) occupies the second position and such that the girl \(\mathrm{G}_1\) is always adjacent to the girl \(G_2\). Then, the number of such possible arrangements isMHT CET 2023 Easy

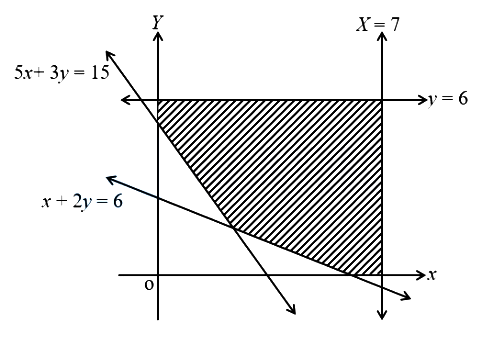

- For the following shaded region, the linear constraints are
