MHT CET · Physics · Current Electricity
A galvanometer of resistance \(\mathrm{G}\) is shunted with a resistance of \(10 \%\) of \(\mathrm{G}\). The part of the total current that flows through the galvanometer is
- A \(\frac{1}{11} \mathrm{I}\)
- B \(\frac{2}{11} \mathrm{I}\)
- C \(\frac{1}{10} \mathrm{I}\)
- D \(\frac{1}{5} \mathrm{I}\)
Answer & Solution
Correct Answer
(A) \(\frac{1}{11} \mathrm{I}\)
Step-by-step Solution
Detailed explanation
\(\begin{aligned} \frac{\mathrm{I}_{\mathrm{g}}}{\mathrm{I}} & =\frac{\mathrm{S}}{\mathrm{S}+\mathrm{G}}=\frac{0.1 \mathrm{G}}{0.1 \mathrm{G}+\mathrm{G}}=\frac{1}{11} \\ \therefore \quad \mathrm{I}_{\mathrm{g}} & =\frac{1}{11} \mathrm{I}\end{aligned}\)
See the Complete Solution
Get step-by-step explanations for this and 2.5 Lakh+ more JEE, NEET & CET questions.
- Unlock all solutions
- Practice the full chapter
- Track accuracy across PYQs
4.8 rated on Google Play · 14,000+ reviews
More questions from Physics
- For a satellite moving in an orbit around the earth at height ' \(h\) ' the ratio of kinetic energy to potential energy isMHT CET 2024 Medium
- Water rises in a capillary tube of radius \(r\) upto a height \(h\). The mass of water in a capillary is \(m\). The mass of water that will rise in capillary of radius \(\frac{\mathrm{r}}{5}\) will beMHT CET 2025 Medium
- A ray of light of intensity ' I ' is incident on a parallel glass slab at a point 'A' as shown in figure. It undergoes partial reflection and refraction. At each reflection \(25 \%\) of incident energy is reflected. The rays \(A B\) and \(A^1 B^1\) undergo interference. The ratio \(I_{\text {max }} / I_{\text {min }}\) is
MHT CET 2025 Medium - If the potential difference across a capacitor is increased from \(5 \mathrm{~V}\) to \(15 \mathrm{~V}\), then the ratio of final energy to initial energy stored in the capacitor isMHT CET 2021 Easy
- According to the law of equipartition of energy the molar specific heat of a diatomic gas at constant volume where the molecule has one additional vibrational mode isMHT CET 2024 Easy
- A tuning fork gives 5 beats per second with 40 cm length of sonometer wire. If the length of the wire is shortened by 1 cm , the number of beats is still the same. The frequency of the fork isMHT CET 2025 Medium
More PYQs from MHT CET
- Given below are two statements. Based on them select the correct option given below.
Statement I: As an adaptation in chiropterophilous flowers large amount of edible pollen grains are produced.
Statement II: Baobab tree is an example of anemophily.MHT CET 2024 Hard - Identify the correct decreasing order of \(\mathrm{pK}_{\mathrm{b}}\) values of compounds from following.MHT CET 2024 Easy
- The letters of the word ' LOGARITHM' are arranged at random. The probability that arrangements starts with vowel and end with consonant isMHT CET 2020 Easy

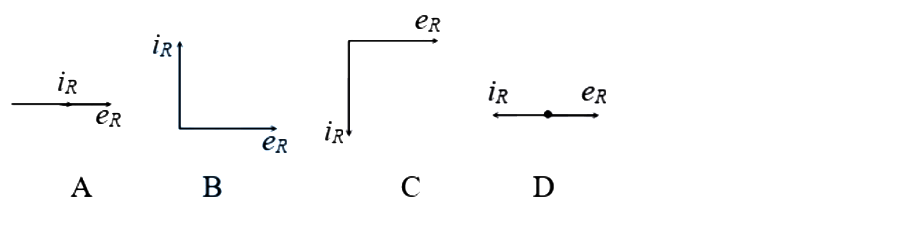

- When a.c. source is connected across a pure resistor, the correct phase relation between current \(\left(i_R\right)\) and voltage \(\left(e_R\right)\) is shown in figure
