CUET · PHYSICS · PYQ PAPER 2023
Which of the following combinations should be used for better tuning of an LCR circuit used for communication?
- A \( R = 25\Omega, L = 1.5\text{H}, C = 35\mu\text{F} \)
- B \( R = 25\Omega, L = 2\text{H}, C = 45\mu\text{F} \)
- C \( R = 15\Omega, L = 3.5\text{H}, C = 30\mu\text{F} \)
- D \( R = 15\Omega, L = 1\text{H}, C = 40\mu\text{F} \)
Answer & Solution
Correct Answer
(C) \( R = 15\Omega, L = 3.5\text{H}, C = 30\mu\text{F} \)
Step-by-step Solution
Detailed explanation
\( Q = \frac{1}{R} \sqrt{\frac{L}{C}} \) \( Q_1 = \frac{1}{25} \sqrt{\frac{1.5}{35 \times 10^{-6}}} \approx 8.28 \) \( Q_2 = \frac{1}{25} \sqrt{\frac{2}{45 \times 10^{-6}}} \approx 8.43 \) \( Q_3 = \frac{1}{15} \sqrt{\frac{3.5}{30 \times 10^{-6}}} \approx 22.78 \)…
See the Complete Solution
Get step-by-step explanations for this and 2.5 Lakh+ more JEE, NEET & CET questions.
- Unlock all solutions
- Practice the full chapter
- Track accuracy across PYQs
4.8 rated on Google Play · 14,000+ reviews
More questions from PHYSICS
- An infinitely long line charge distribution produces an electric field of \( 9 \times 10^4 \text{ N/C} \) at a distance of 2 cm. The linear charge density of the distribution is :CUET 2025 Hard
- The factors on which the deviation produced by a prism depends on are :
(A) Angle of incidence
(B) Angle of Prism
(C) Nature of material of Prism
(D) Colour of light
(E) Wavelength of light
Choose the correct answer from the options given below :CUET 2023 Hard - The terminal voltage of a cellCUET 2025 Hard
- A nucleus \({ }_{92}^{238} X\) emits one alpha particle and then one beta particle (electron). The product nucleus will haveCUET 2025 Medium
- In an experiment with Meter Bridge, with unknown resistance R in the left gap, the null point is obtained at \( l_1 = 40 \text{ cm} \) from the left end. Now a resistance of \( R' = 10 \Omega \) is connected in series with resistance R, the null point is obtained at \( l_2 = 70 \text{ cm} \) from the left end. The value of resistance R isCUET 2025 Easy
- Which of the following statement(s) is/are correct?
(A) The power of a lens is the ability of the lens to converge or diverge the incident rays.
(B) S.I unit of the power of a lens is dioptre while focal length is in centimetres
(C) For a lens of larger focal length, power is smaller
(D) In any combination of lenses, the power of combination is not algebraic addition of power of combined lenses
Choose the correct answer from the options given below:CUET 2025 Medium
More PYQs from CUET
- The mass of urea (\(NH_2CONH_2\)) required to make 2.5 kg of 0.25 molal aqueous solution will be :CUET 2023 Medium
- Let \(\Delta=\left|\begin{array}{ccc}a+b x & c+d x & p+q x \\ a x+b & c x+d & p x+q \\ u & v & w\end{array}\right|=\left(k-x^2\right)\left|\begin{array}{ccc}a & c & p \\ b & d & q \\ u & v & w\end{array}\right|\) then the value of k is:CUET 2023 Medium
- Select the Lanthanoids which show +2 oxidation state?
(A) Yb
(B) Ce
(C). Eu
(D) Ho
Choose the correct answer from the options given below:CUET 2025 Easy - Select the properties of cancer cell
(A) Forms benign tumors
(B) Causes very little damage to the surrounding tissues
(C) Can show Metastasis

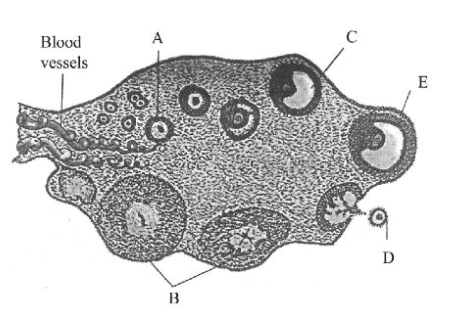

(D) Lacks contact inhibitionCUET 2023 Hard - Observe the figure and answer the following questions
