CUET · PHYSICS · PYQ PAPER 2025
Resonant frequency of a LCR series circuit is 16 kHz. If the capacitance is increased to 16 times, then the new resonant frequency will become
- A 16 kHz
- B 32 kHz
- C 8 kHz
- D 4 kHz
Answer & Solution
Correct Answer
(D) 4 kHz
Step-by-step Solution
Detailed explanation
\( f \propto \frac{1}{\sqrt{C}} \) \( f_2 = f_1 \sqrt{\frac{C_1}{C_2}} \) \( f_2 = 16 \text{ kHz} \sqrt{\frac{C_1}{16C_1}} \) \( f_2 = 16 \text{ kHz} \times \frac{1}{4} \) \( f_2 = 4 \text{ kHz} \)
See the Complete Solution
Get step-by-step explanations for this and 2.5 Lakh+ more JEE, NEET & CET questions.
- Unlock all solutions
- Practice the full chapter
- Track accuracy across PYQs
4.8 rated on Google Play · 14,000+ reviews
More questions from PHYSICS

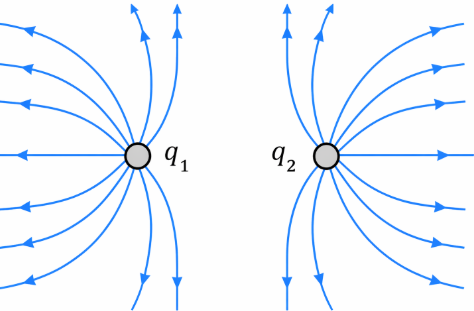

- Identify the correct statement about the electric charges \( q_1 \) and \( q_2 \) from the figure given below.
