CUET · PHYSICS · PYQ PAPER 2025
A step-up transformer operates on a 220 V line and supplies a current of 2 A. The ratio of primary and secondary winding is 1 : 25. Assuming 100% efficiency, the output power of the transformer is:
- A 11000 W
- B 22000 W
- C 36000 W
- D 44000 W
Answer & Solution
Correct Answer
(A) 11000 W
Step-by-step Solution
Detailed explanation
\( V_s = V_p \times \frac{N_s}{N_p} \) \( V_s = 220 \, V \times \frac{25}{1} = 5500 \, V \) \( P_{out} = V_s \times I_s \) \( P_{out} = 5500 \, V \times 2 \, A = 11000 \, W \)
See the Complete Solution
Get step-by-step explanations for this and 2.5 Lakh+ more JEE, NEET & CET questions.
- Unlock all solutions
- Practice the full chapter
- Track accuracy across PYQs
4.8 rated on Google Play · 14,000+ reviews
More questions from PHYSICS
- A current carrying solenoid of cross-sectional area \( 2 \, cm^2 \) and 2000 turns has a magnetic moment of \( 0.80 \, Am^2 \). The current flowing through the solenoid isCUET 2025 Medium
- The resistivity of a conductor in which a current density of \( 3.5 \, \text{A m}^{-2} \) is found to exist on applying an electric field of \( 28 \, \text{V m}^{-1} \) will be:CUET 2025 Hard
- A Fraunhofer diffraction pattern due to a single slit of width 0.2 mm is being obtained on a screen placed at a distance of 2 m from the slit. The first minimum lies at 5 mm on either side of the central maximum on the screen. The wavelength of light is:CUET 2025 Easy
- Match List-I with List-II
List-I (Physical Quantity) List-II (Units) (A) Magnetic field (I) \( J \, T^{-1} \) (B) Magnetic moment (II) \( T \, m \, A^{-1} \) (C) Pole strength (III) \( J \, T^{-1} m^{-1} \) (D) Permeability of free space (IV) \( Wb \, m^{-2} \)
Choose the correct answer from the options given below:CUET 2025 Easy - The physical quantity which does not change when X-rays of wavelength \( 10^{-10} \, \text{m} \), or visible light of wavelength 400 nm, or radio waves of 500 m wavelength pass through glass isCUET 2025 Hard

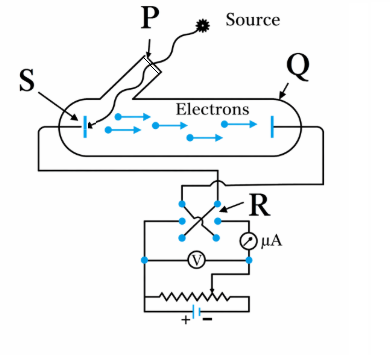

- In the experimental arrangement for study of photoelectric effect given below, P, Q, R and S, respectively are:
(A) Commutator
(B) Evacuated Glass Tube
(C) Photosensitive Plate
(D) Quartz WindowCUET 2025 Medium
More PYQs from CUET
- Which of the following is NOT an Intra Uterine Device ?CUET 2023 Medium
- The product (Y) in the following reaction is
\(\text{2 C}_6\text{H}_5\text{CHO} \xrightarrow[\text{Heat}]{\text{conc. NaOH}} \text{Y} + \text{C}_6\text{H}_5\text{COONa}\)CUET 2023 Hard - For the differential equation \((x+y) d y+(x-y) d x=0\), which of the following is/are correct?
(A) Differential equation is homogeneous
(B) Order of differential equation is 1
(C) Integrating factor of differential equation is \(e ^{ x }\)
(D) Degree of the equation is not defined
Choose the correct answer from the options given below:CUET 2025 Medium - Two positive point charges are 3 m apart in the air and the sum of the two charges is \( 20 \text{ } \mu\text{C} \). If the force between them is 0.075 N, the two charges areCUET 2025 Medium
- If a line makes angles \(\alpha, \beta\) and \(\gamma\) with positive \(x\)-axis, \(y\)-axis and \(z\)-axis respectively, then the value of \(\sin ^2 \frac{\alpha}{2} \cos ^2 \frac{\alpha}{2}+\sin ^2 \frac{\beta}{2} \cos ^2 \frac{\beta}{2}+\sin ^2 \frac{\gamma}{2} \cos ^2 \frac{\gamma}{2}\) isCUET 2025 Easy
- Match List-I with List-II
where \(\lambda\) is an arbitrary constant.List-I List-II (A) The equation of the line passing through the points \((-1,0,2)\) and \((3,4,6)\) is (I) \(\vec{r}=(-\hat{i}+2 \hat{k})+\lambda(4 \hat{i}+4 \hat{j}+4 \hat{k})\) (B) The vector equation of the line \(\frac{x-1}{2}=\frac{y+1}{3}=\frac{4-z}{5}\) is (II) \(\vec{r}=(\hat{i}+3 \hat{j}+2 \hat{k})+\lambda(2 \hat{i}+\hat{j}+3 \hat{k})\) (C) The equation of the line passing through \((1,3,2)\) and parallel to \(\frac{x+1}{2}=\frac{y-1}{1}=\frac{z+1}{3}\) is (III) \(\vec{r}=(-\hat{i}+2 \hat{j}+3 \hat{k})+\lambda(2 \hat{i}+\hat{j}+4 \hat{k})\) (D) The equation of the line along \(2 \hat{i}+\hat{j}+4 \hat{k}\) and passing through \((-1,2,3)\) is (IV) \(\vec{r}=(\hat{i}-\hat{j}+4 \hat{k})+\lambda(2 \hat{i}+3 \hat{j}-5 \hat{k})\)
Choose the correct answer from the options given below:CUET 2023 Hard
