CUET · PHYSICS · PYQ PAPER 2025
A long solenoid is formed by winding 40 turns/cm. The current required to produce a magnetic field of 22 mT inside the solenoid will be (Take \( \mu_0 = 4\pi \times 10^{-7} \, Tm A^{-1} \))
- A \(2.2 A\)
- B \(4.4 A\)
- C \(0.22 A\)
- D \(0.44 A\)
Answer & Solution
Correct Answer
(B) \(4.4 A\)
Step-by-step Solution
Detailed explanation
\(n = 40 \text{ turns/cm} = 40 \times 10^2 \text{ turns/m} = 4000 \text{ turns/m}\) \(I = \frac{B}{\mu_0 n}\) \(I = \frac{22 \times 10^{-3} \text{ T}}{4\pi \times 10^{-7} \text{ Tm A}^{-1} \times 4000 \text{ m}^{-1}}\) \(I = \frac{22 \times 10^{-3}}{16000\pi \times 10^{-7}}\)…
See the Complete Solution
Get step-by-step explanations for this and 2.5 Lakh+ more JEE, NEET & CET questions.
- Unlock all solutions
- Practice the full chapter
- Track accuracy across PYQs
4.8 rated on Google Play · 14,000+ reviews
More questions from PHYSICS

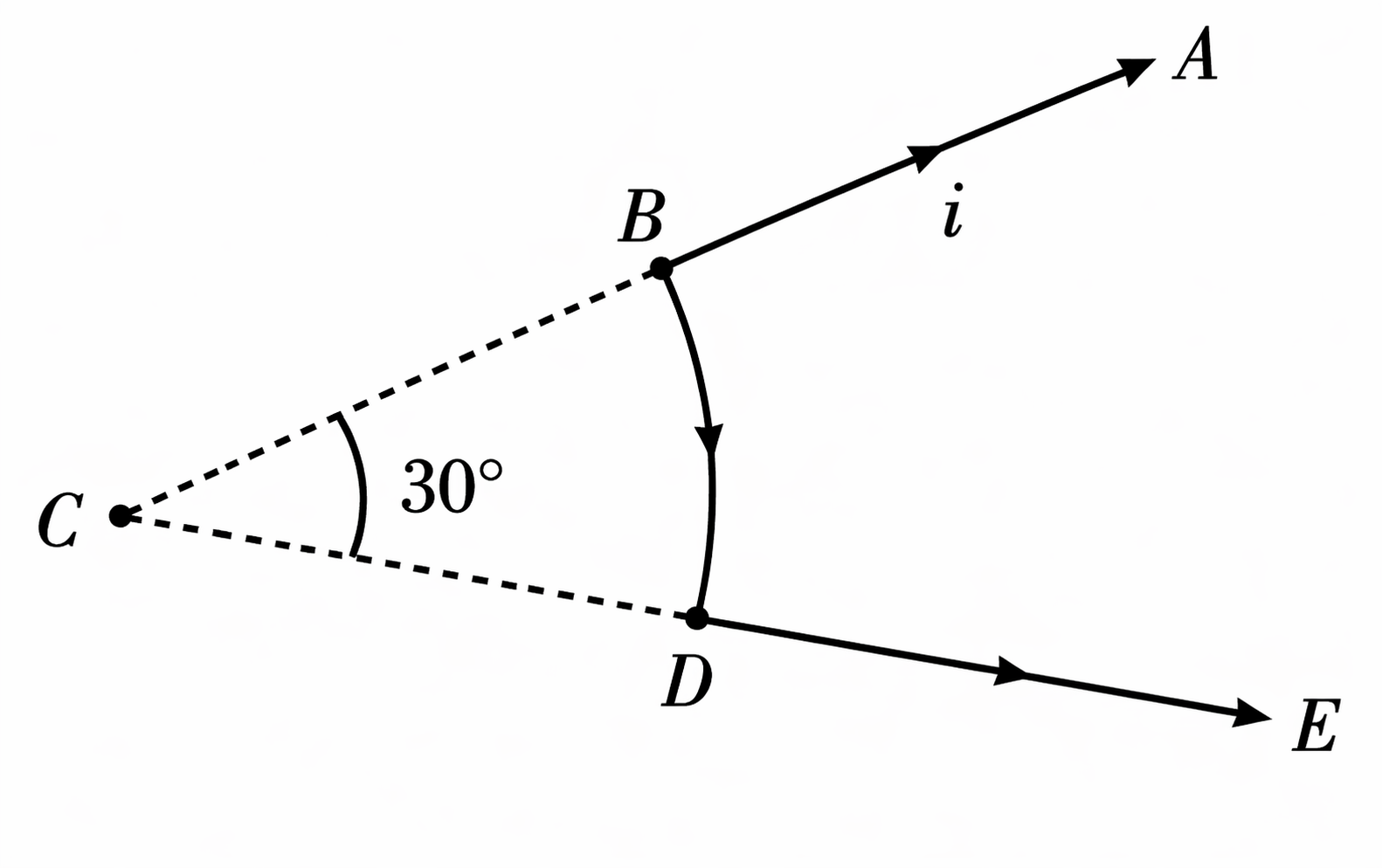

- The radius of the arc BD representing a wire is 60 cm. The magnitude of the magnetic field produced at centre C, if a current of 3.0 A flows in the wire, will be:
