COMEDK · Physics · 30. Semiconductors
Three ideal diodes and resistors connected to the cell of negligible internal resistance is as shown. Find the current passing through the \(10 \Omega\) resistor.
- A 2 A
- B 1 A
- C 0.1 A
- D 0.5 A
Answer & Solution
Correct Answer
(D) 0.5 A
Step-by-step Solution
Detailed explanation
The circuit consists of three parallel branches connected to a 10 V source in series with a 10 \(\Omega\) resistor. We analyze the state of each diode \(D_1, D_2, D_3\). Branch 1 contains \(D_1\) in forward bias configuration relative to the positive terminal of the battery.…
See the Complete Solution
Get step-by-step explanations for this and 2.5 Lakh+ more JEE, NEET & CET questions.
- Unlock all solutions
- Practice the full chapter
- Track accuracy across PYQs
4.8 rated on Google Play · 14,000+ reviews
More questions from Physics
- An electric dipole placed in a non-uniform electric field experiencesCOMEDK 2014 Easy
- The sides of a parallelogram are represented by vectors \(\mathbf{p}=5 \hat{\mathbf{i}}-4 \hat{\mathbf{j}}+3 \hat{\mathbf{k}}\) and \(\mathbf{q}=3 \hat{\mathbf{i}}+2 \hat{\mathbf{j}}-\hat{\mathbf{k}}\) Then, the area of the parallelogram isCOMEDK 2023 Easy
- Electron of mass \(m\) and charge \(q\) is travelling with a speed \(v\) along a circular path of radius \(r\) at right angles to a uniform magnetic field of intensity \(B\). If the speed of the electron is doubled and the magnetic field is halved, then the resulting path would have a radiusCOMEDK 2017 Easy
- In the head-on collision of two alpha particles \(\alpha_1\) and \(\alpha_2\) with the gold nucleus, the closest approaches are 31.4 fermi and 94.2 fermi respectively. Then the ratio of the energy possessed by the alpha particles \(\alpha_2 / \alpha_1\) is:COMEDK 2023 Medium
- A wooden block floats with \(\dfrac{3}{5}\) of its volume submerged in a tank of water. If a denser liquid is poured into the tank, the wooden block floats with half its volume in the liquid and the remaining half in water. The relative density of the liquid is:COMEDK 2025 Medium
- The dimensional formula for inductance isCOMEDK 2013 Easy
More PYQs from COMEDK
- The metallic ions that have almost same spin only magnetic moment are :
(i) \(\mathrm{Co}^{2+}\)
(ii) \(\mathrm{Mn}^{2+}\)
(iii) \(\mathrm{Cr}^{2+}\)
(iv) \(\mathrm{Cr}^{3+}\)COMEDK 2024 Medium - Consider the following compounds , \(\mathrm{CH}_3 \mathrm{Cl}(\mathrm{A}), \quad \mathrm{CH}_3 \mathrm{Br}(\mathrm{B}), \quad \mathrm{CH}_2 \mathrm{Br}_2(\mathrm{C}), \quad \mathrm{CHBr}_3(\mathrm{D})\) The correct order of boiling points of the compounds is:COMEDK 2025 Medium

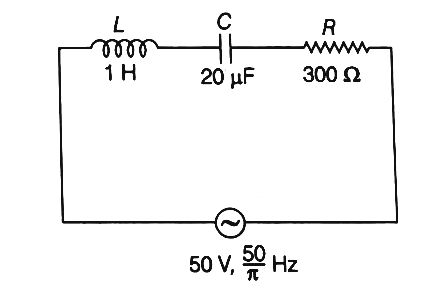

- In the series \(L-C-R\) circuit shown, the impedance is
