COMEDK · Physics · 22. Electromagnetic Induction
A wire '\(l\)' m long bent into a circular loop is placed perpendicular to the magnetic field of flux density \(B \text{ Wbm}^{-2}\). Within 0.1sec, the loop is changed into a square of side '\(a\)' m and flux density is doubled. The value of e.m.f. induced is
- A \(\dfrac{5 B\left(8 \pi a^2-l^2\right)}{2 \pi}\)
- B \(\dfrac{-5 B\left(8 \pi a^2-l^2\right)}{2 \pi}\)
- C \(\dfrac{-5 B\left(8 \pi \mathrm{a}^2-\mathrm{l}^2\right)}{2}\)
- D \(\dfrac{-5 B\left(8 a^2-l^2\right)}{2 \pi}\)
Answer & Solution
Correct Answer
(B) \(\dfrac{-5 B\left(8 \pi a^2-l^2\right)}{2 \pi}\)
Step-by-step Solution
Detailed explanation
Initial flux: \(\Phi_1 = B \cdot \pi r^2 = B \cdot \pi \left(\dfrac{l}{2\pi}\right)^2 = \dfrac{Bl^2}{4\pi}\) Final flux: \(\Phi_2 = 2B \cdot a^2 = 2Ba^2\) Induced e.m.f.: \(e = -\dfrac{\Delta\Phi}{\Delta t} = -\dfrac{2Ba^2 - \dfrac{Bl^2}{4\pi}}{0.1}\)…
See the Complete Solution
Get step-by-step explanations for this and 2.5 Lakh+ more JEE, NEET & CET questions.
- Unlock all solutions
- Practice the full chapter
- Track accuracy across PYQs
4.8 rated on Google Play · 14,000+ reviews
More questions from Physics
- The resistance of a \(10 \mathrm{~m}\) long wire is \(10 \Omega\). Its length is increased by \(25 \%\) by stretching the wire uniformly. The new resistance isCOMEDK 2024 Medium
-
In the figure, first the capacitors are fully charged by closing the key \(\mathrm{K}\). Then after opening the Key a dielectric material with dielectric constant 2 is filled in the space between the plates of both the capacitor. At this state the ratio of the Charge on the capacitor \(C_1\) to that of \(C_2\) is:COMEDK 2023 Medium - In a Young's double slit experiment, the two interfering waves forming the interference pattern have the same amplitude. The phase difference between the two waves reaching a point X is \(\dfrac{\pi}{3}\). What will be the phase difference between the two waves at a point Y if the intensity ratio at X and Y is \(3: 2\) ?COMEDK 2025 Medium
- A planet is 121 times heavier than moon and has a diameter 9 times that of moon. If the escape velocity on the planet is v , then the escape velocity on the moon will be:COMEDK 2025 Medium
- When current in an inductance is changed at a uniform rate from 15 A to 30 A in 3 s, the self-induced emf in the coil is 25 V. The change in energy of the coil during this process is:COMEDK 2025 Easy
-

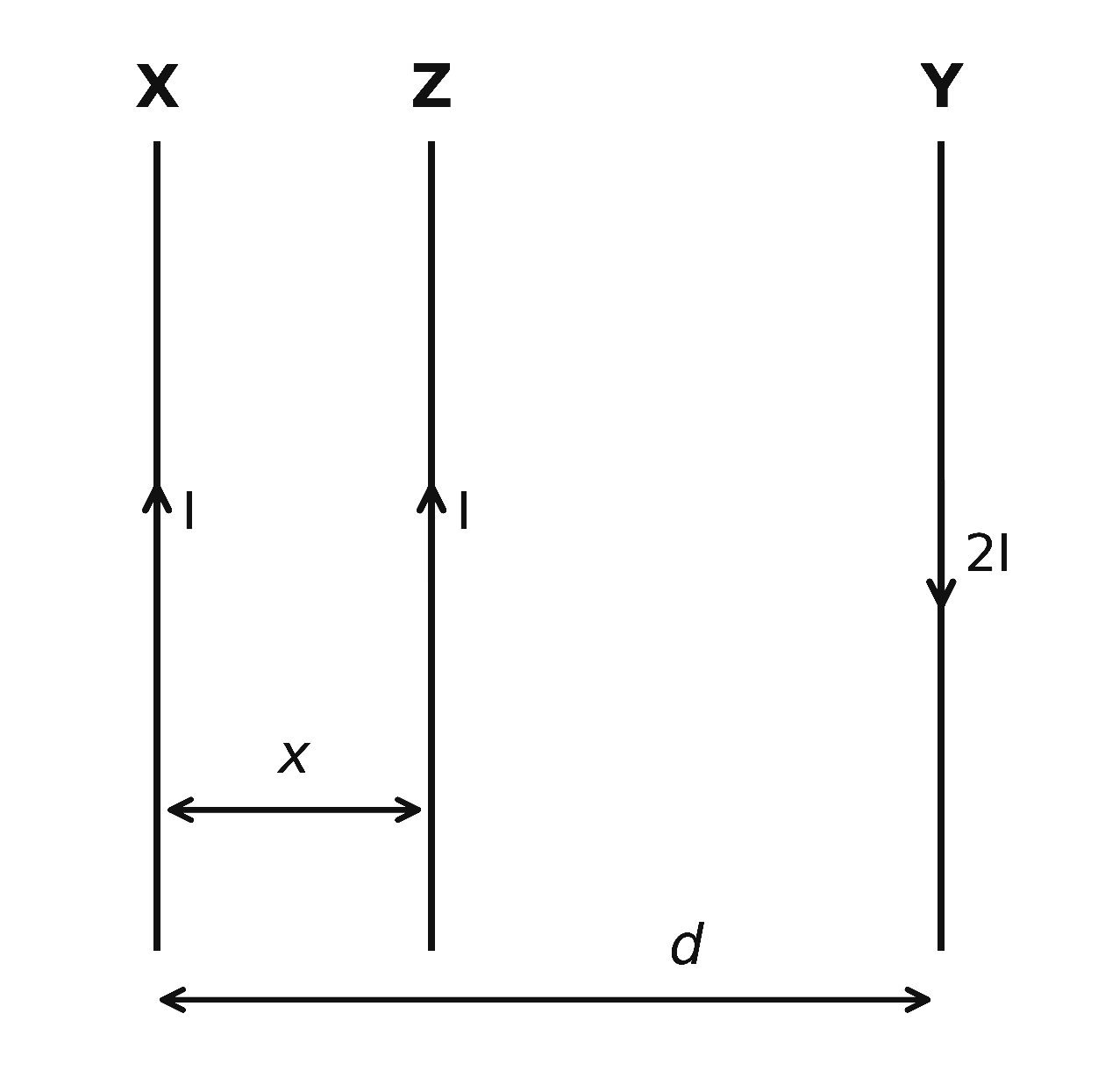

Two long parallel conductors X and Y are placed vertically at a distance d apart. Conductor X carries a current I upwards and conductor Y carries a current 2I downwards. A third long conductor Z is placed parallel to both X and Y and between X and Y. If Z carries a current I upwards and is at a distance \(x\) from conductor X, then:COMEDK 2026 Medium
